Polarstar F2 Nozzle: Length Guide, Compatibility by Model, and How to Order a Custom Fit

PolarStar F2 Nozzle: length guide, compatibility, and custom tuning

In an HPA setup with a PolarStar F2, nozzle length is not a minor detail. It directly affects compression, BB feeding, and overall consistency. When the length is incorrect, issues often appear that are mistakenly attributed to the hop-up, chamber, or even engine tuning.

This guide explains why nozzle length matters, how to use compatibility tables, and when it makes sense to order a custom nozzle.

Why nozzle length is critical

The PolarStar F2 nozzle must reach the hop-up chamber with very precise depth. If it’s too short, feeding and sealing suffer. If it’s too long, it can force BB entry, disrupt the cycle, or create inconsistencies.

Each replica has different internal geometry, so there is no single universal length. That’s why proper measurement and reference comparison are essential.

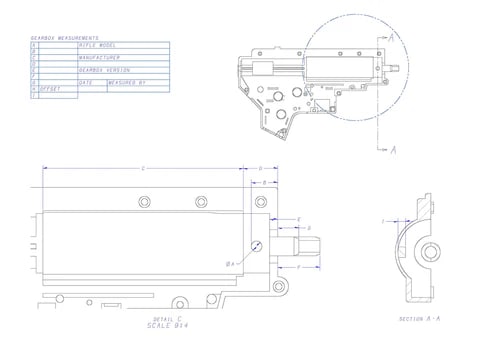

Reference formula

According to Sychev Lab, the reference formula is:

TIP = F + B − (A/2) + 7.4295 mm

More important than memorizing the formula is understanding the compatibility rule:
the final measurement should fall within ±0.254 mm of an existing production nozzle. If it falls outside that range, a custom nozzle is recommended.

Default nozzle used in most kits

By default, kits include the standard M4 nozzle (#1, 30.61 mm). This covers most M4/M16 platforms, so in many cases no special request is needed.

However, if your replica falls outside that category, it’s best to confirm before ordering.

How to check if your replica needs a different length

There are three practical ways:

1. Measure your original nozzle and compare it with the table
2. Use a known reference for your platform
3. Provide measurements and setup details if you’re outside the standard range

If your measurement doesn’t match any reference within ±0.254 mm, avoid forcing a “close enough” option — a custom nozzle is the better solution.

Compatibility table

Common symptoms of incorrect nozzle length

If the length is wrong, you may experience:

• inconsistent feeding
• loss of compression
• unstable FPS
• double shots or irregular cycling
• needing to over-adjust the hop-up
• different behavior between magazines

None of these alone confirm a nozzle issue, but they are strong indicators to check length first.

When to order a custom nozzle

You should consider a custom nozzle when:

• your replica is not listed in the table
• your measured length falls outside the tolerance range
• you are using a hybrid setup with mixed components
• the standard nozzle does not provide consistent sealing or feeding

In these cases, provide as much detail as possible: base platform, hop-up chamber, reference nozzle, and measured values.

What to check before blaming the nozzle

Before assuming nozzle length is the issue, also check:

• hop-up chamber condition and compatibility
• bucking seating
• overall alignment
• magazine fit and feed height
• body tolerances

Nozzle length is critical, but it works within a system of interacting components.

Quick FAQ

Do all kits use the 30.61 mm M4 nozzle?

It’s the default, but not universal. Some replicas require different lengths.

What tolerance is acceptable?

±0.254 mm from a known production nozzle.

Can I use a nozzle even if my replica isn’t in the table?

Yes, but you should verify measurements and possibly order a custom nozzle.

Is it better to approximate or go custom?

If you’re outside the tolerance range, go custom. Approximation usually leads to more trial and error.

Conclusion

With the PolarStar F2, the correct nozzle makes the difference between a setup that just works and one that feeds properly, seals correctly, and maintains consistency.

If your replica matches a known reference, you’re in a great position. If not, measuring and adjusting from the start will save you time and frustration later.

Product reference: https://lab.sychev.xyz/products?slug=hpa-polarstar-f2
