MAXX Model Hop-Up: Differences Between Models, Versions, and Compatibility with HPA Kits
001
002
Differences between MAXX Model hop-up chambers
MAXX Model hop-up chambers are well known for their machining quality, fine adjustment, and wide range of variants. The issue is that this variety can also create confusion: not all MAXX chambers are the same, not all receivers accept the same version, and not all clones behave like an original.
If you’re building an HPA system, this matters even more, because alignment between the chamber and engine leaves very little tolerance for poor parts or incorrect references.
Original MAXX vs clone: the key difference
001
The first thing to clarify is that an original MAXX and a clone are not just different in color or price. The real difference lies in machining quality, dimensional consistency, and overall build quality.
How to identify a current original
- one oval side hole
- four mounting screws

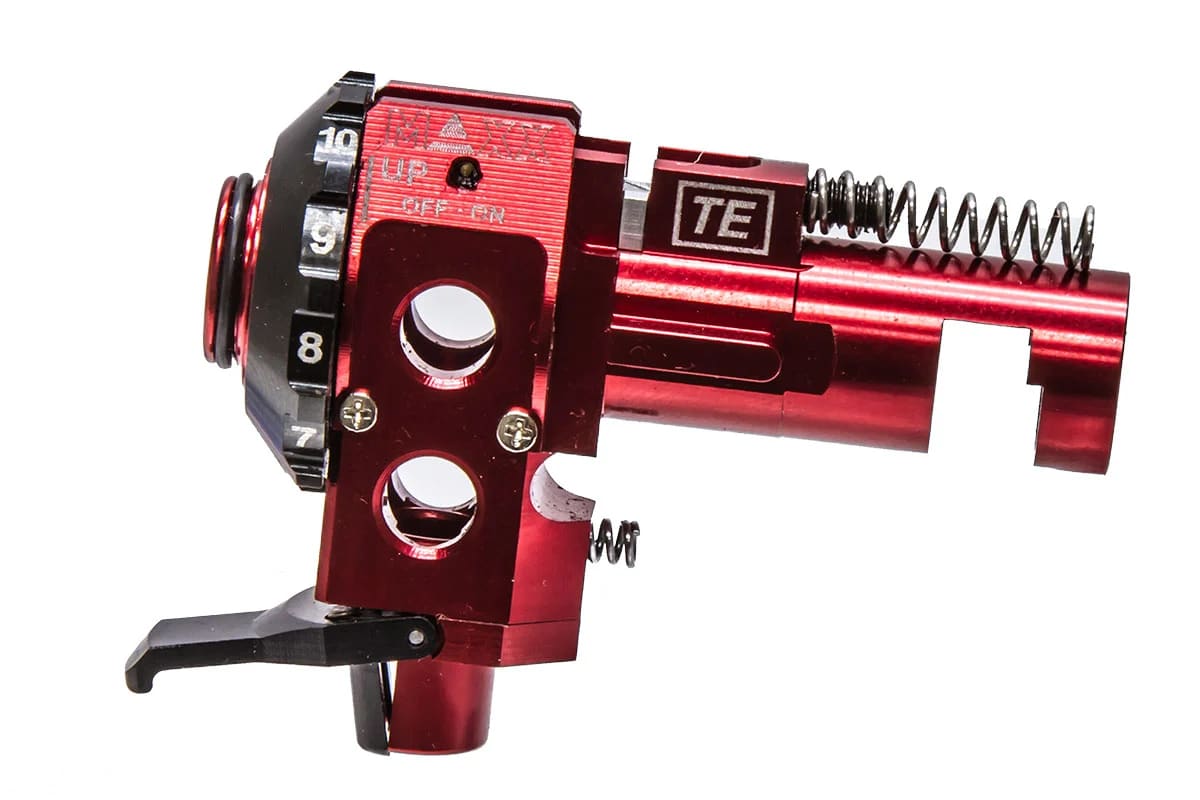

How clones are usually identified
Most clones replicate an older version and typically have:
- two round side holes
- only two screws
Visually it’s easy to spot, but the real difference is in tolerances and finish. In HPA setups, even small deviations can lead to poor feeding, friction, or setups that require workarounds.
Why MAXX works well in HPA builds
In HPA, the hop-up chamber becomes a critical part of the alignment system. A well-machined chamber provides:
- better overall consistency
- reduced random tolerances
- more repeatable assembly
- fewer issues compared to lower-quality or clone chambers

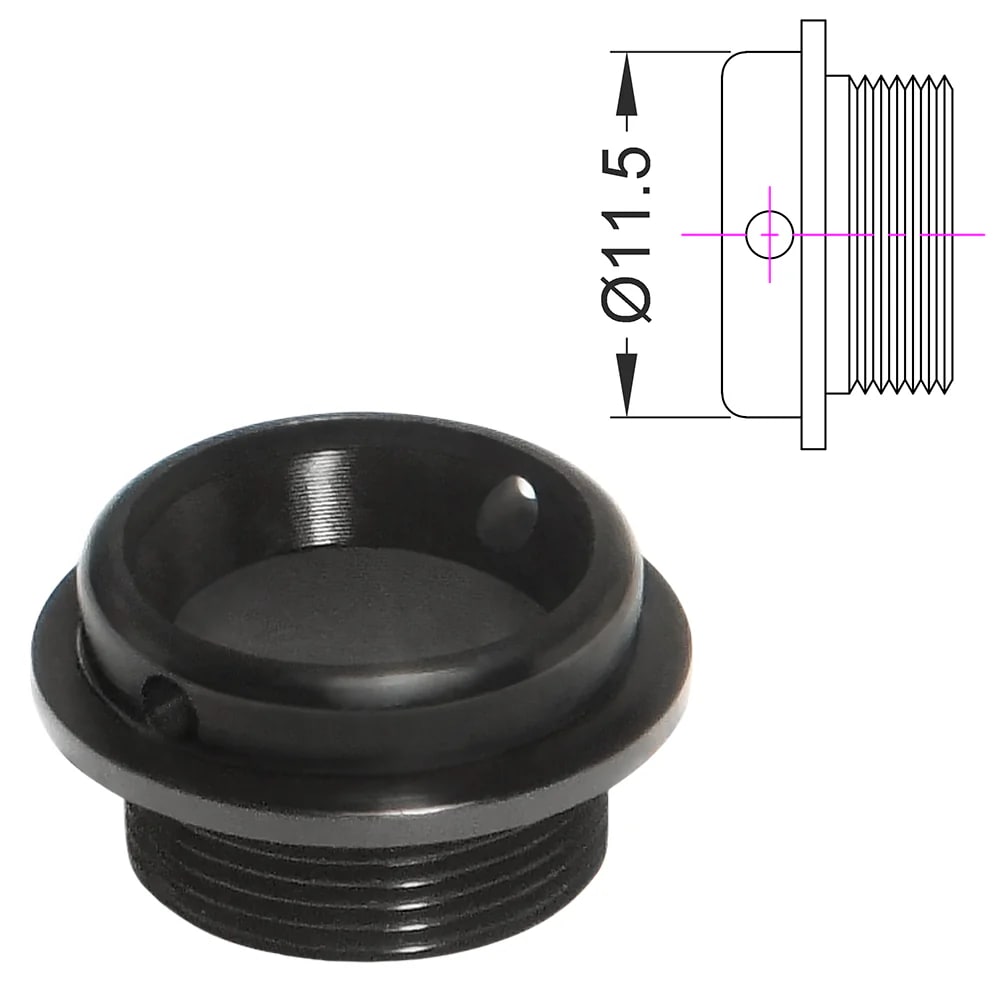

MAXX also offers interchangeable hop-up lips, useful for tuning performance depending on BB weight and use case.
002
Models and compatibility overview
| Model | Platform | Compatibility | Approx. price | Visual ID |
|---|---|---|---|---|
| SV | VFC SCAR-L/H | SCAR | $49.98 | Gold, MWT-style |
| MXW | MTW | MTW-9 | $39.98 | Black, red wheel |
| MGW | MTW M4 | MTW M4 | $79.98 | Black, black wheel |
| MTW M4W | MTW M4 | MTW M4 | $79.98 | Black, black wheel |
| M4P PRO | M4 | PolarStar M4/M16 | $69.98 | Blue |
| M4i PRO | M4 | ICS / ICS CXP / CS4 / EBB / AEG | $69.88 | Silver |
| M4Gi | M4 | ICS | $79.98 | Black, black wheel |
| M4G | M4 | Standard M4 | $79.98 | Black, black wheel |
| M4Ei | M4 | ICS | $79.98 | Gold, black wheel |
| M4E | M4 | Standard M4 | $79.98 | Gold, black wheel |
| M4A Pro | M4 | TM / G&G / KRYTAC (except KWA) | $69.98 | Red, black wheel |
Prices are approximate and may change. Use them as a general reference only.
How to choose correctly
To avoid buying the wrong chamber, check:
- Your exact platform: standard M4, ICS, MTW, SCAR, etc.
- The specific version of the chamber
- Your HPA setup and alignment method
AEG: [image type=multiple ids=img-1772660736051-xhmub60am,img-1772660782120-ergirga50,img-1772661062836-wcsm7p1bn,img-1772661151071-1iwucsxec,img-1772661249027-j9j8h0gp6,img-1772661324772-z4z0pmnfq,img-1772661375324-wkwoogpap,img-1772661460882-ouurzvus2,img-1772661487393-atc4xxamu]
MTW: [image type=multiple ids=img-1772660993666-etcpbd5ar,img-1772661024194-tuvd352ri]
A common mistake is assuming “it looks like an M4 MAXX” means “it works with any M4.” That’s not true. Even within M4 platforms, there are differences that require specific variants.
Important note about older ICS platforms
Some older ICS receivers have a structural bridge near the front pin, affecting magazine insertion and compatibility with certain chambers like PROWIN.
In simple terms: don’t assume compatibility on older ICS platforms — always verify.
Why the HPA kit simplifies alignment
One of the key ideas is that the HPA kit shifts alignment reference to the rear body pin, reducing reliance on springs, O-rings, and front-end adjustments. :contentReference[oaicite:0]{index=0}
This simplifies the system:
- fewer compensating parts
- cleaner alignment
- more predictable results
Practical recommendations
If you already have an original MAXX
Identify the exact model and confirm compatibility. If correct, it’s an excellent base for an HPA build.
If you’re considering clones
They may work, but are less reliable. For consistency and precision, originals are strongly recommended.
If your platform is ICS or uncommon
Do not rely on assumptions. Always verify compatibility before buying.
Quick FAQ
How do I tell original vs clone?
- original: oval hole + four screws
- clone: two round holes + two screws
Does any M4 MAXX fit any M4?
No. Different M4 platforms require different variants.
Are clones always incompatible?
Not always, but they are riskier due to tolerances and machining quality.
Do I still need springs and O-rings with the HPA kit?
Typically no — alignment is handled from the rear pin.
Conclusion
Choosing the right MAXX Model is not about aesthetics, but about true compatibility with your platform and HPA setup. Differences between models — and between originals and clones — matter, especially in sensitive platforms like ICS.
The good news: once you start with the correct chamber, the HPA kit simplifies alignment and reduces the need for workaround solutions. If in doubt, always verify platform, version, and references before buying.
