polarstar f2 prowin alignment kit v2 1 m4 aeg hpa

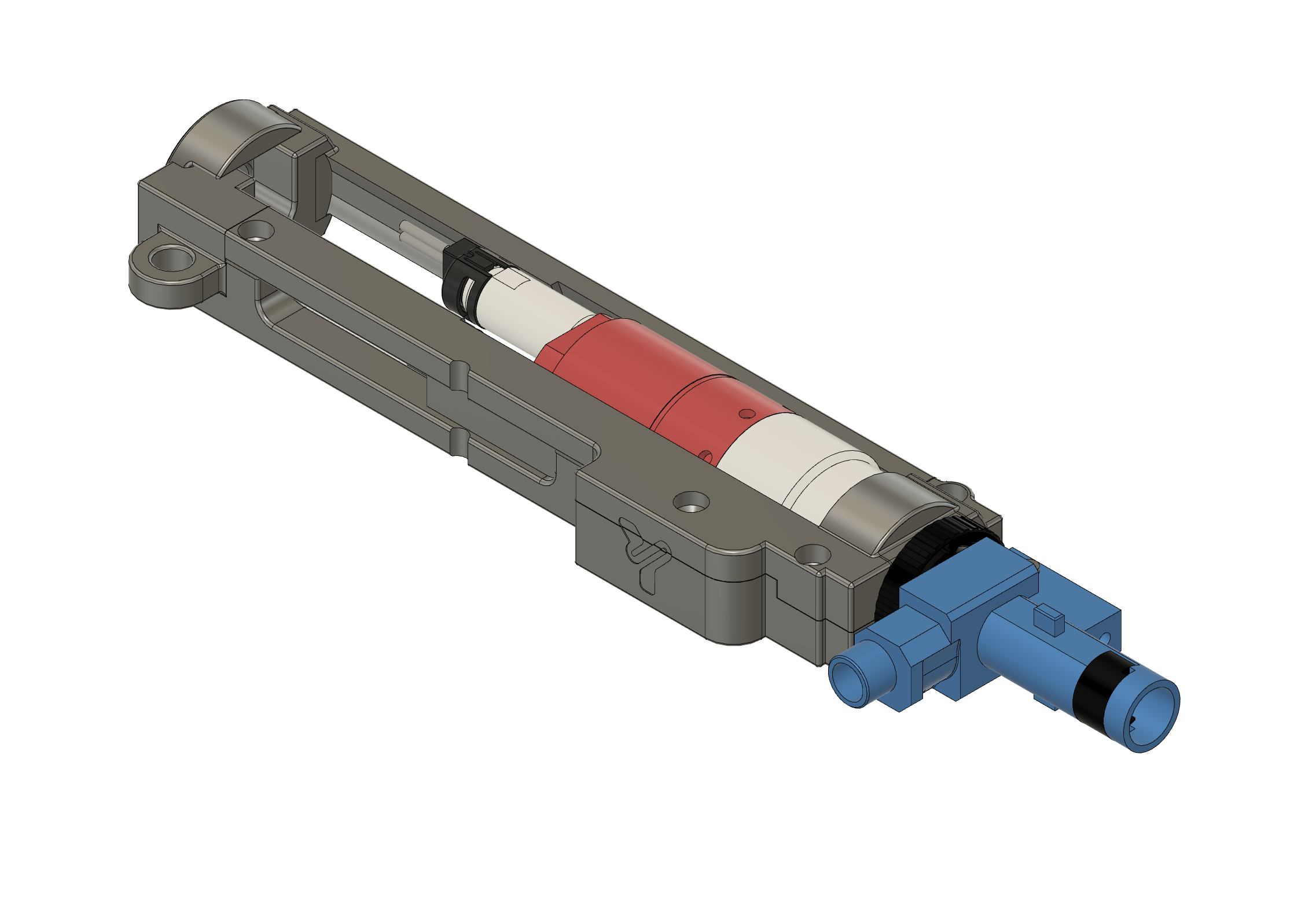

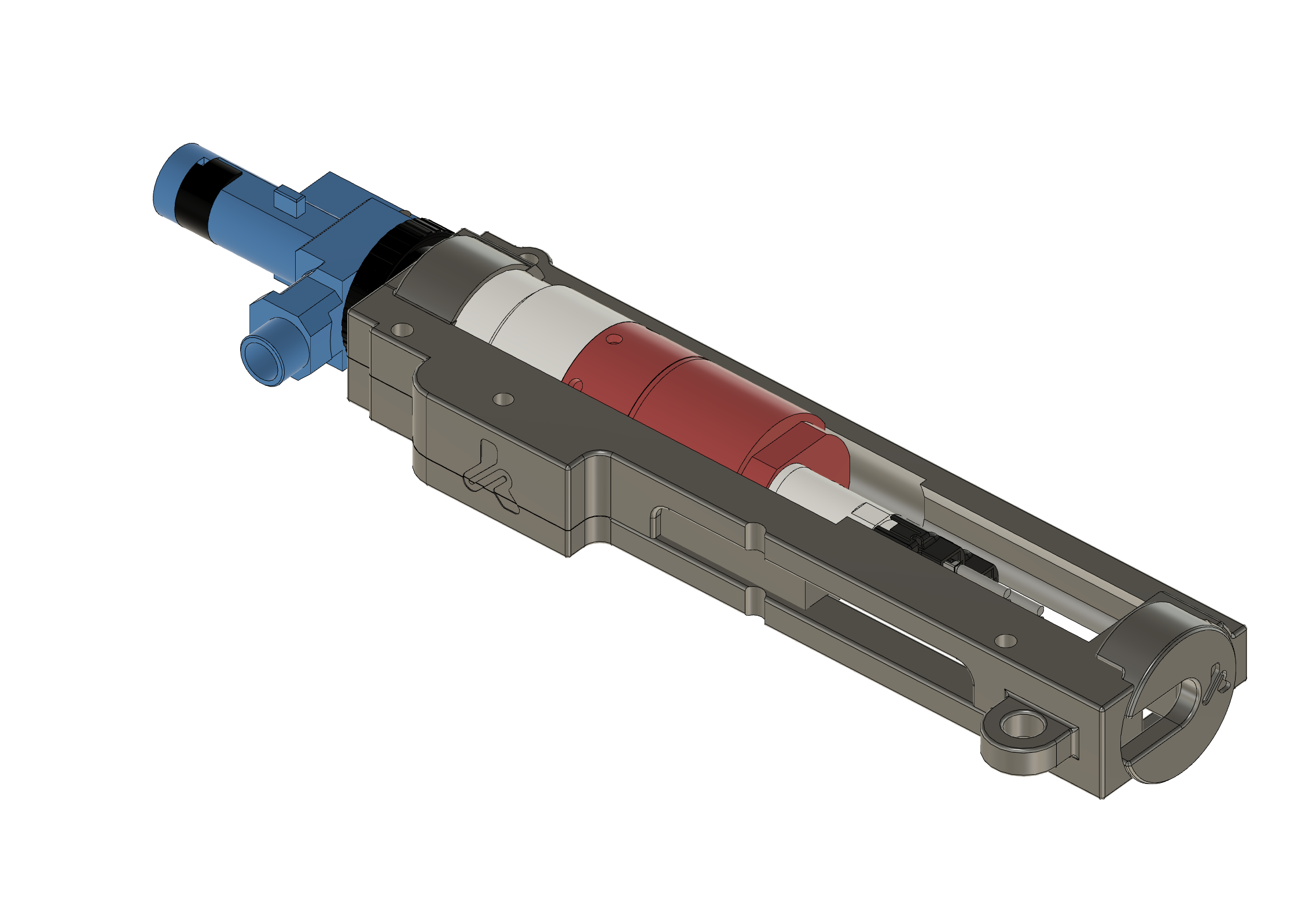

Version 2.1 of the hop-up alignment system, designed for M4 AEG HPA replicas using:

• PolarStar F2 engine (dual-solenoid HPA engine with precise pneumatic control and high efficiency).
• PROWIN chamber (CNC aluminum hop-up chamber with micrometric adjustment and excellent support for heavy BBs).

This kit ensures perfect centering between the F2 nozzle and the PROWIN chamber, eliminating lateral play that affects feeding consistency in HPA setups. Fully compatible with ICS split systems and standard V2 gearboxes.

Compatibility

Component	Compatibility
HPA Engine	PolarStar F2 M4
Hop-up Chamber	PROWIN
Base Replica	M4 AEG
Gearbox	V2 / ICS SPLIT

What the kit includes

• Rear clip for mounting via rear pin or fixed stock.
• Base with housing for M3 inserts (optional brass for increased durability).
• Side clip for routing the F2 HPA tube/line.
• Front locking top cap optimized for the PROWIN chamber.
• Rear plate with mounting point for an M5 screw (additional reinforcement).

Installation and adjustment

1. Printing and preparation

   • Print the parts with 65–80% infill.
   • Lightly sand internal areas and contact surfaces for a clean fit.
   • Apply dry lubricant or wax on sliding surfaces to facilitate installation.

2. Installation in the replica

   • Insert the base into the lower and install the M3 inserts.
   • Place the rear clip aligned with the rear pin or the stock anchor point.
   • Install the PROWIN chamber with the inner barrel; the top cap locks the assembly while keeping the barrel centered.
   • Route the PolarStar F2 HPA line through the side clip to prevent rubbing or bends.

3. Final fixation

   • Secure the rear plate using an M5 screw and washer for maximum rigidity.
   • Verify that the F2 nozzle enters perfectly centered into the PROWIN chamber.
   • Perform dry feeding tests and adjust the F2 pressure (recommended range: 45–145 PSI).

Required components (not included)

• 4× M3 × 4.2 mm inserts
• 4× M3 × 8 SHCS screws

Lower receiver recommendations

It is recommended to use the ICS metal lower receiver for maximum rigidity.
If you prefer to print the lower part, the following Gearbox V2 Lower “Universal Lower Part” models are compatible:

• Version 3
• Version 4.2
• Version 4.3 MTW

You can find them HERE.

3D printing parameters

• Approximate print time: ~1 h 30 min
• Recommended material: PLA+
• Layer height: 0.10 mm – 0.15 mm

Manuals

Installation and adjustment manuals are available in the Manuals section of the website or on the project’s Discord server.
