Precision 3D model at 1:1 scale of the Version 6 (V6) gearbox shell from G&G Armament, reference G-16028, prepared for 8 mm bushings.
The file is delivered in STEP (.stp) format, the universal standard for industrial design: compatible with any CAD software such as Fusion 360, SolidWorks, FreeCAD, or Onshape, with no loss of geometry.
Designed for AEG replicas that use a V6 gearbox, especially useful for platforms such as P90 / FN2000 / PDW99 / G2010.
Model specifications
| Parameter | Detail |
|---|---|
| Gearbox version | V6 |
| Reference manufacturer | G&G Armament |
| OEM reference | G-16028 |
| Bushing diameter | 8 mm |
| Scale | 1:1 (real dimensions) |
| File format | STEP (.stp) — universal CAD |
| Replica type | AEG (Airsoft Electric Gun) |
What this model is for
- Custom part design: a perfect base for designing clips, supports, adapters, and internal upgrades that fit directly into the V6 shell.
- Engineering reference: check tolerances and dimensions before manufacturing any part that interacts with the gearbox.
- 3D printing: generate STL files for prototypes, assembly tools, alignment templates, or access covers.
- CNC machining: the STEP file can be directly imported into CAM software for metal or polymer manufacturing.
- Technical documentation: ideal for detailed replica documentation, manuals, or HPA conversion projects on V6 platforms.
File contents

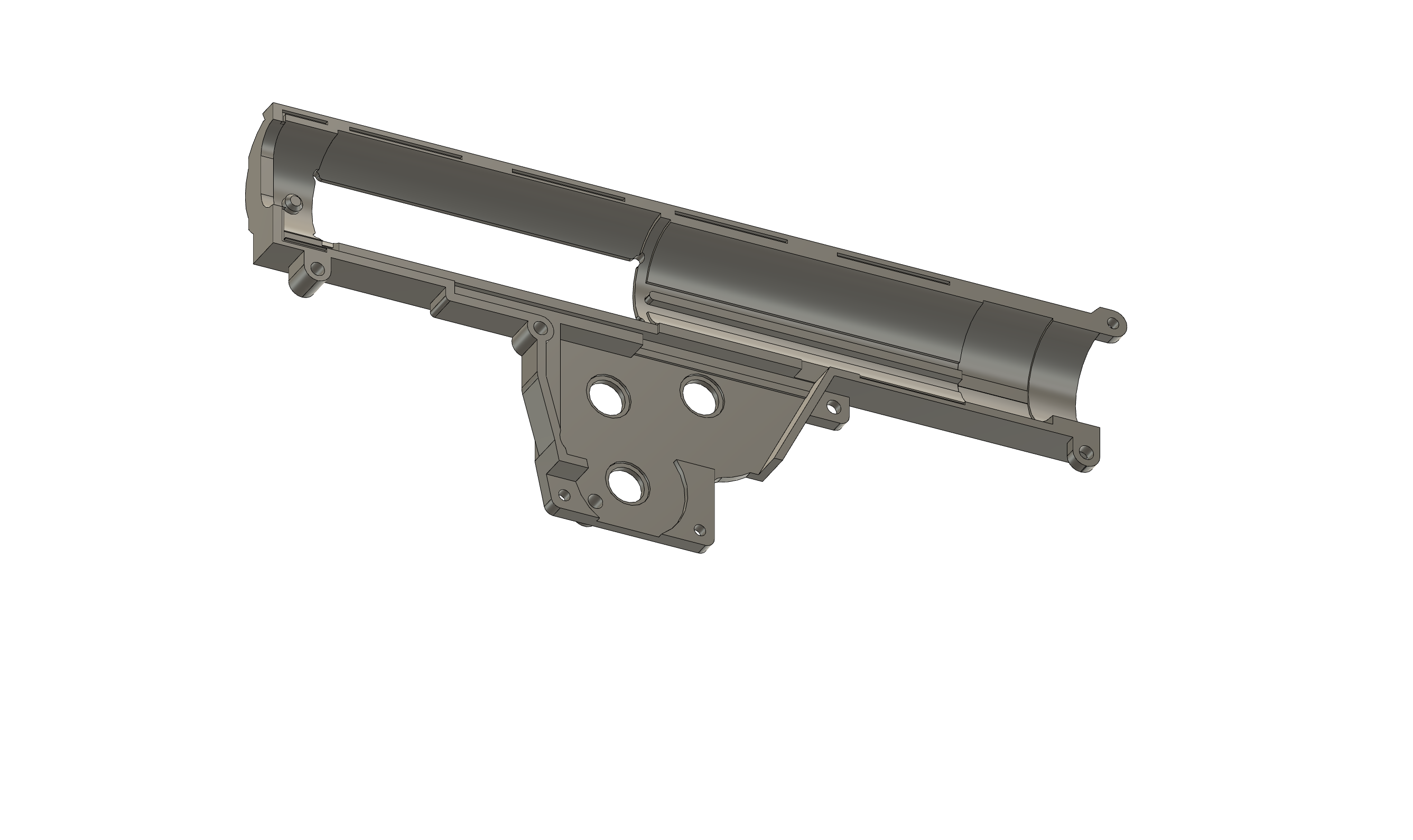

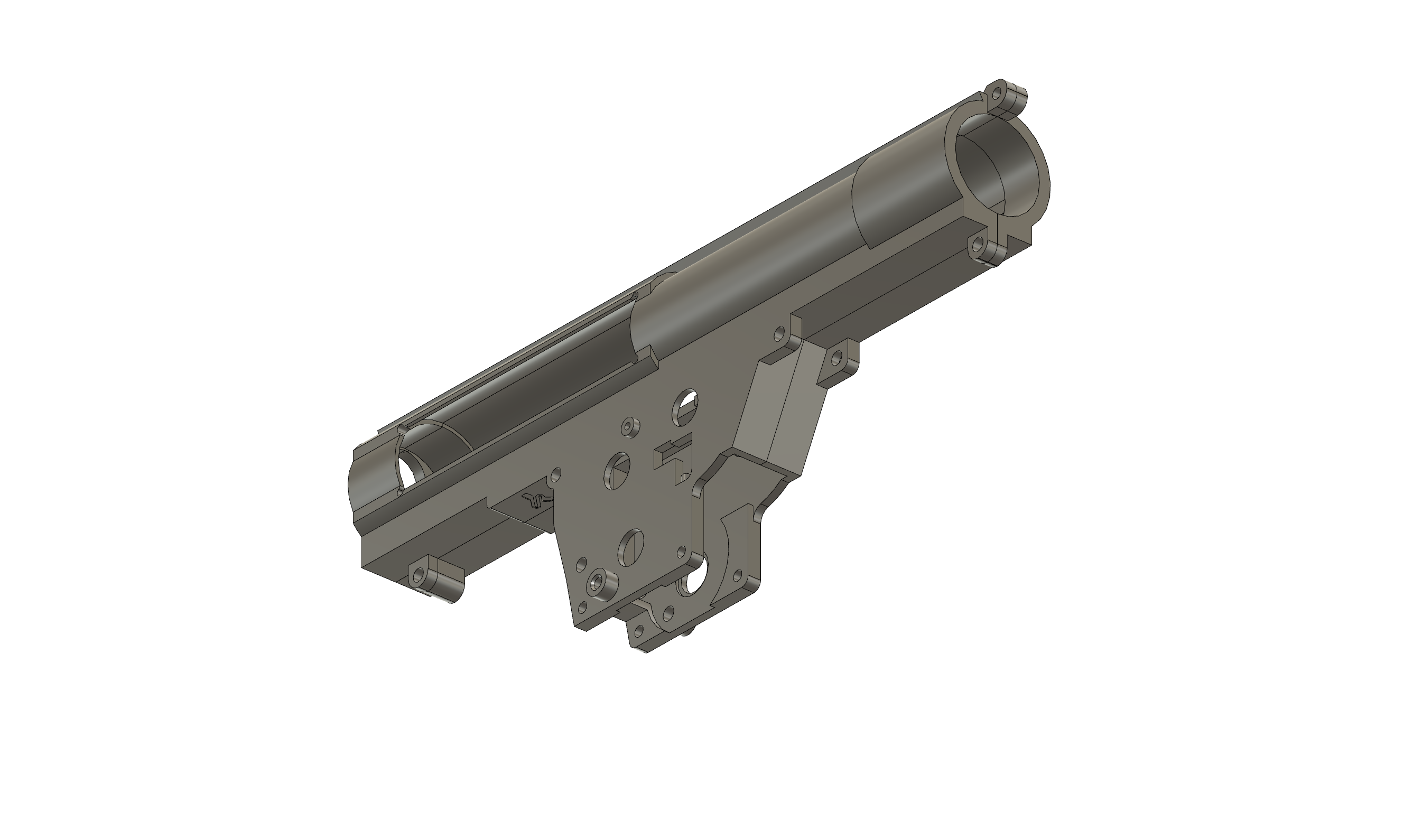

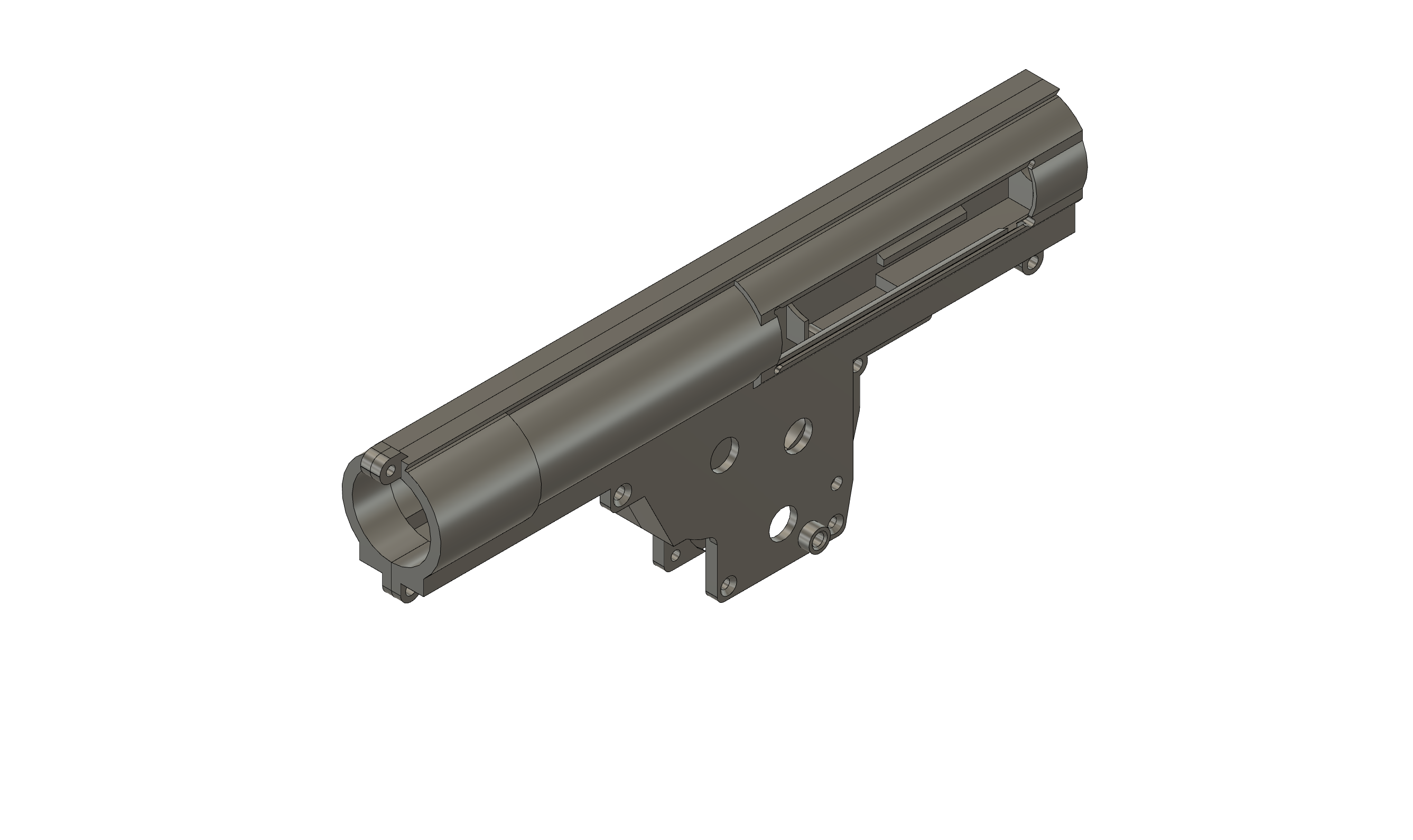

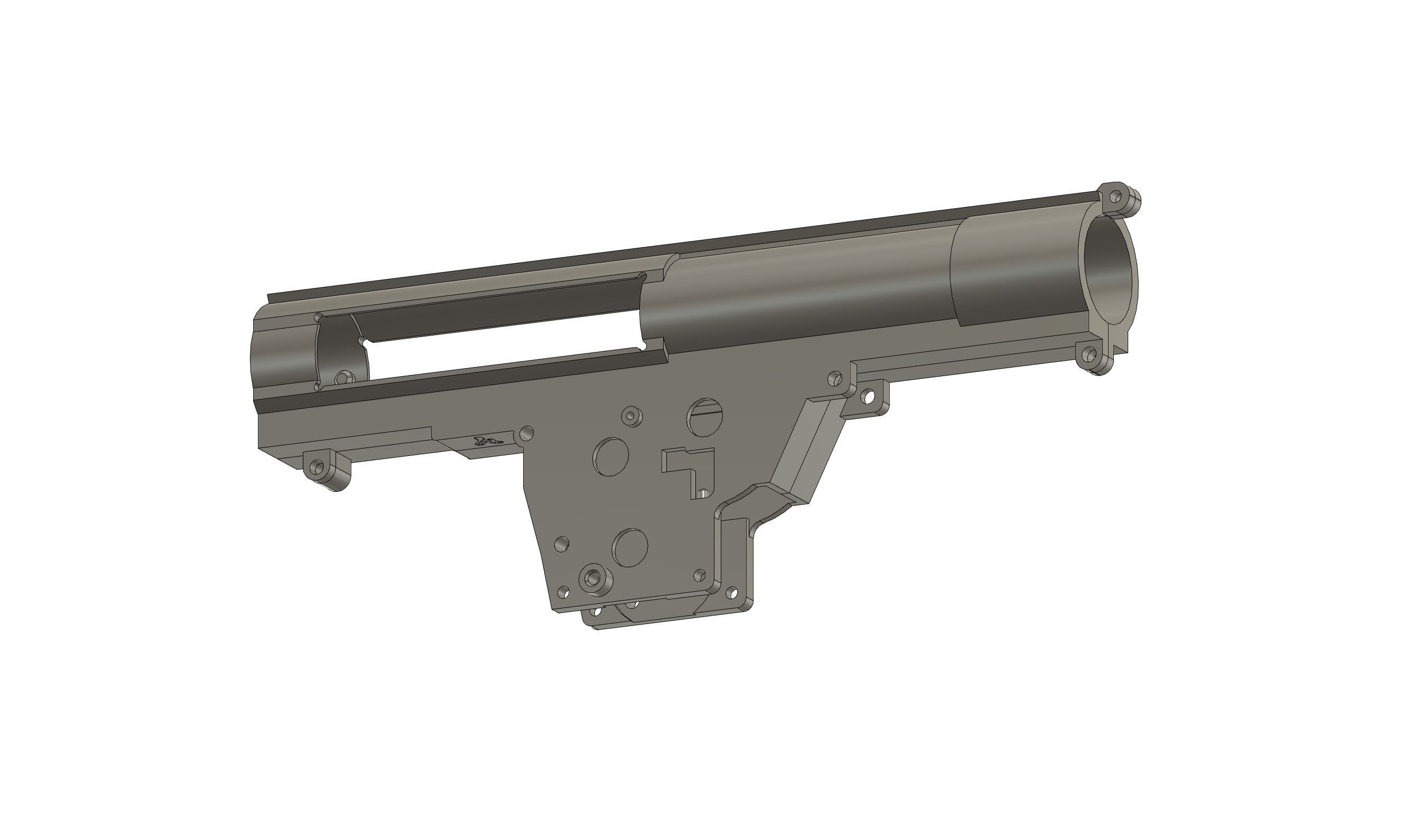

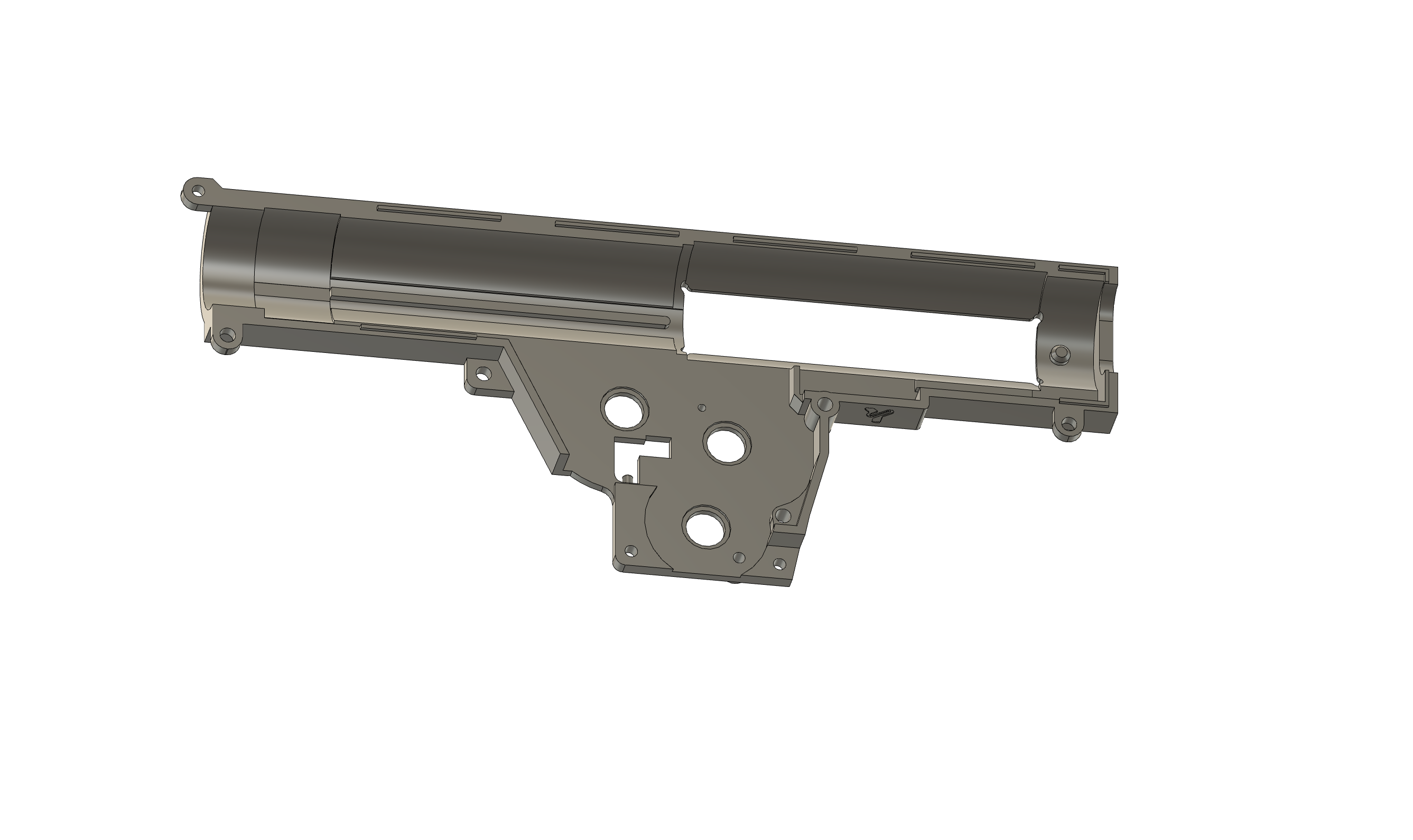

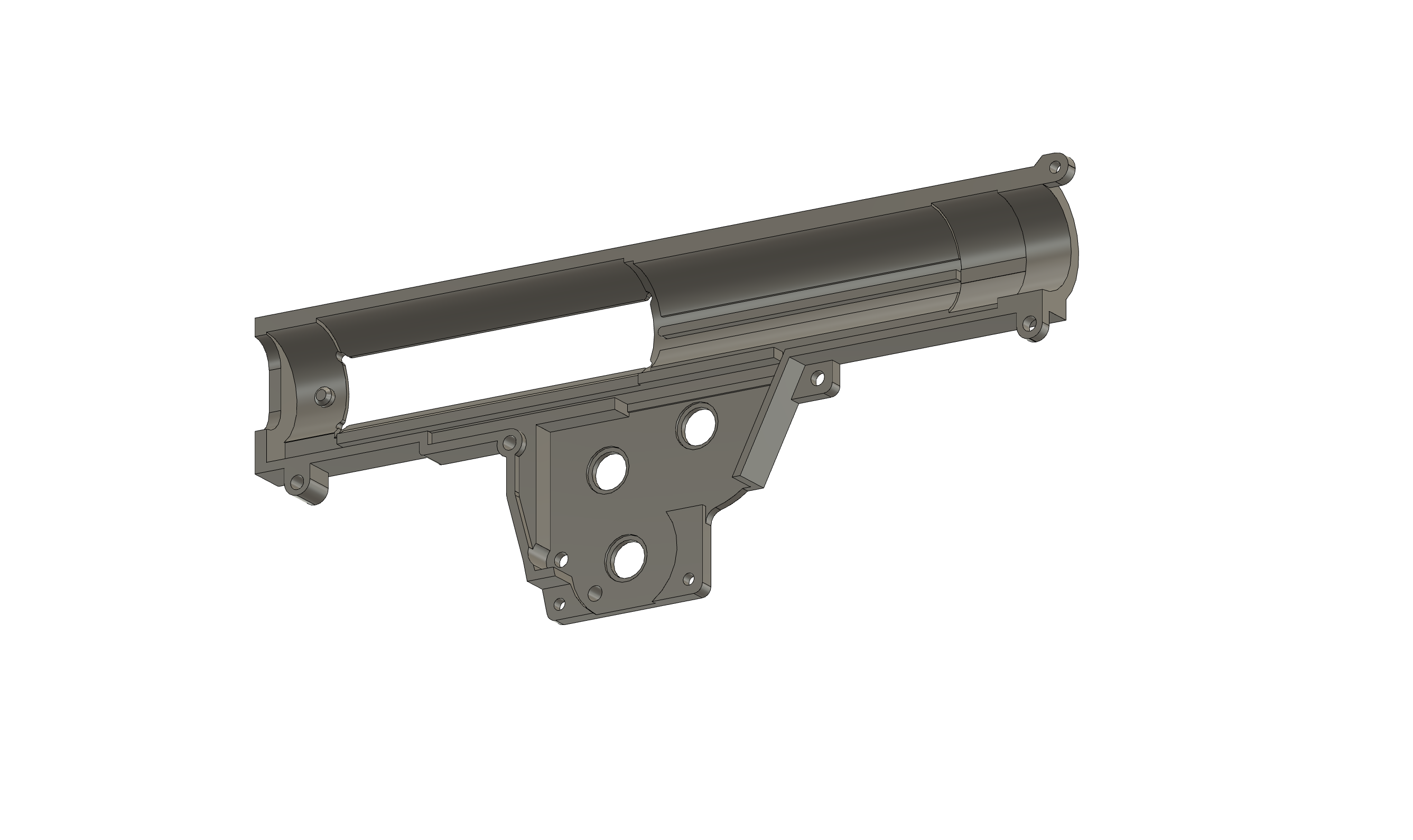

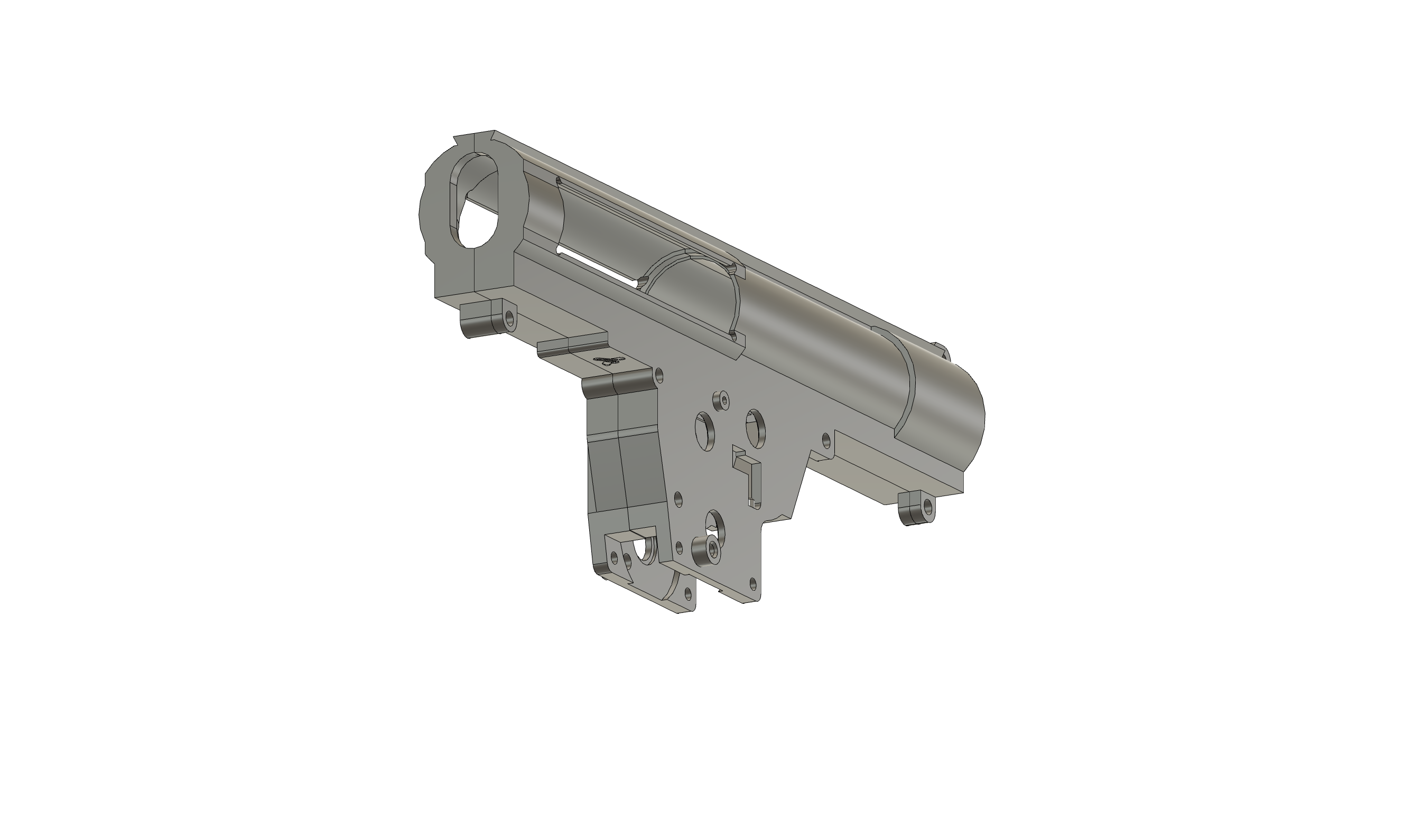

- Complete G&G G-16028 V6 gearbox shell, both halves
- Geometry faithful to OEM dimensions with 8 mm bushing housings
- STEP format: no dependency on proprietary software, importable into any CAD/CAM environment
Use and thanks to the author
This model has been created through extensive measuring, digitizing, and review work.
If you use this file in your projects, keeping the author’s logo is a way to recognize their work and support the creation of future models. It is not mandatory, but it is greatly appreciated by the community.
💡 Using this model in a project? Share the result on the Discord server or tag the author. The community grows when we share.
Common applications
- Designing HPA conversion kits for P90 / FN2000 platforms
- Manufacturing FCU mounts for V6 gearboxes (Gate Titan, Wolverine, etc.)
- Prototyping internal parts for performance upgrades
- Reverse engineering study and technical documentation of AEG replicas
Verified platform compatibility
- P90 / PDW99 (G&G and similar)
- FN2000 / G2010 (G&G)
- Any AEG replica with a V6 gearbox and 8 mm bushings
