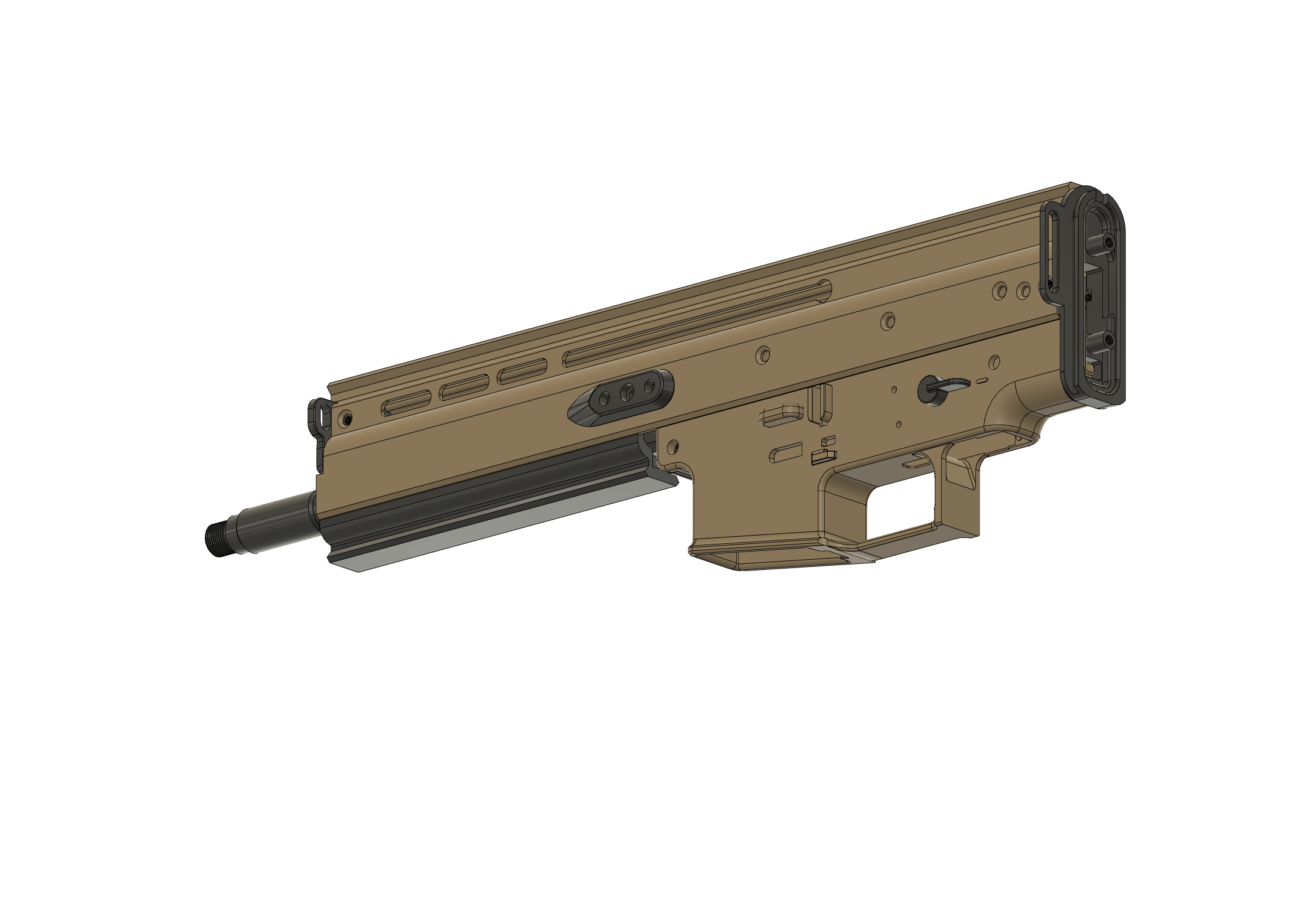

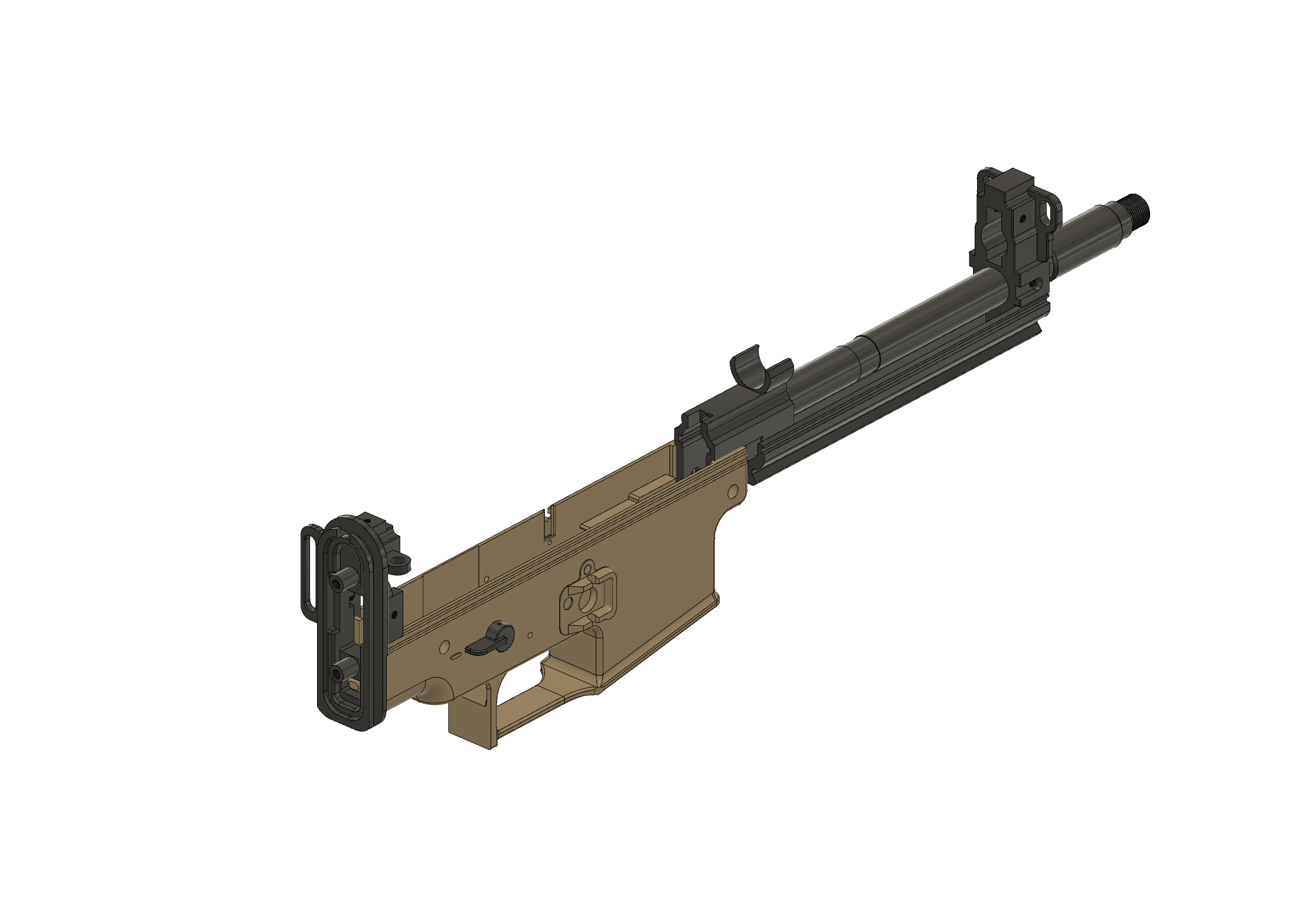

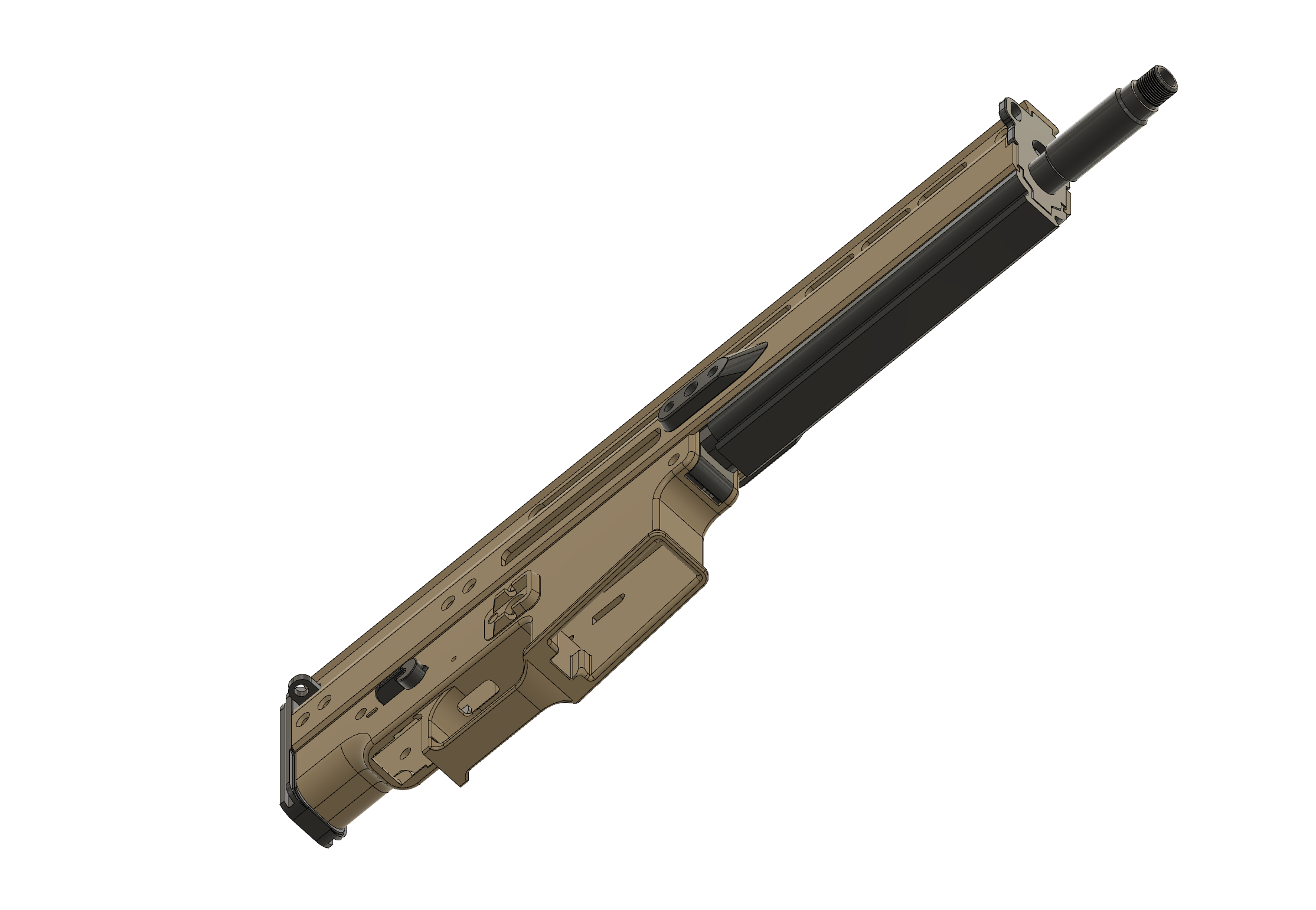

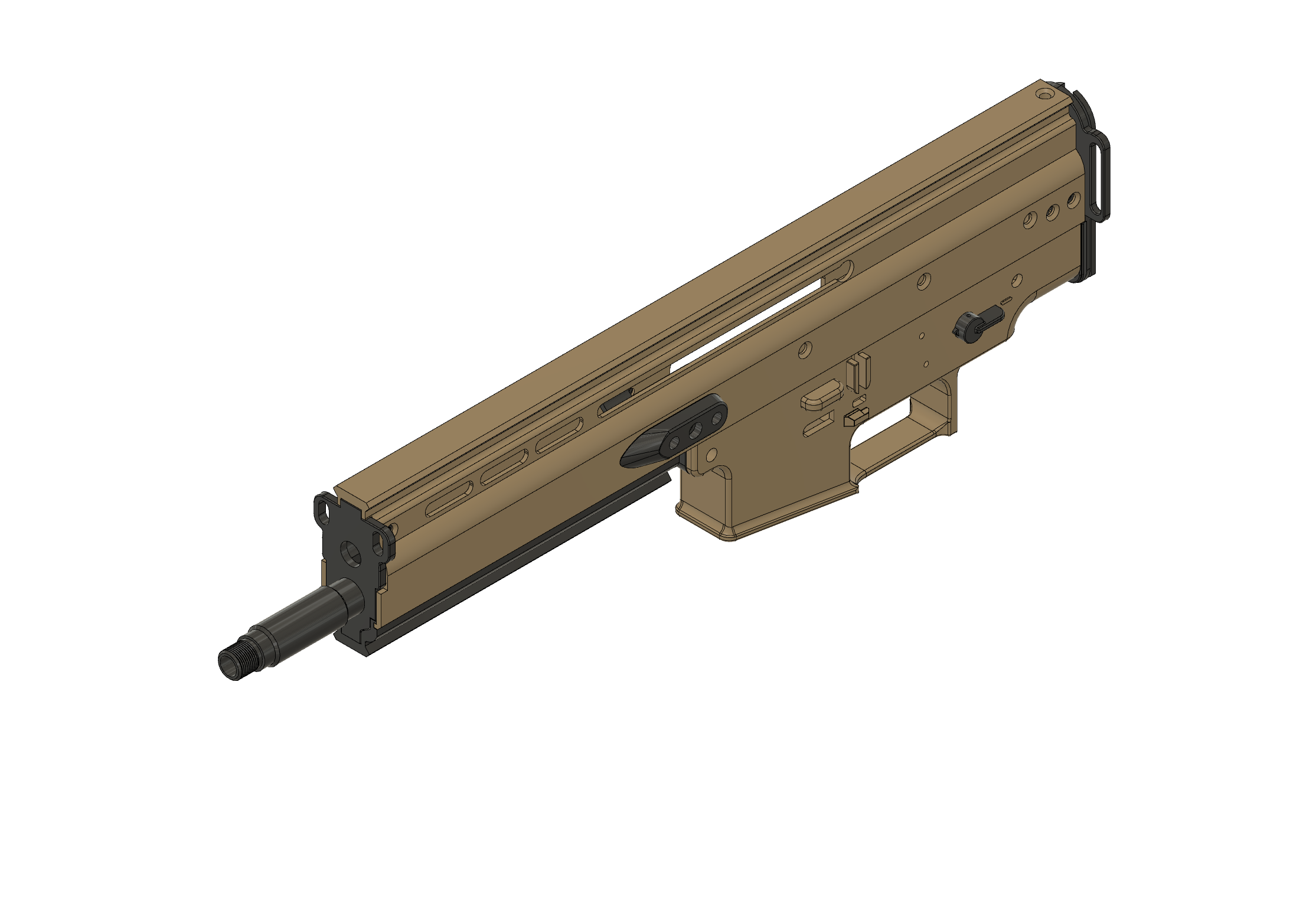

Full 3D model of an Airsoft SCAR-L body, created through real scanning and millimetric modeling with physical verification part by part. Designed for functional printing, restoration, or full customization of your replica. Compatible with Gearbox V2 and standard M4 / AR15 components.
🙏 Author’s note: This model is released after significant design and measurement work.
If you use it in your project, keeping the author’s logo on the part is a way to support the effort and future model development.
Technical Features
- 1:1 scale, modeled using 3D scanning and verified with calipers in all critical areas.
- Integrated support for inner barrel and hop-up, aligned with M4 standard.
- Upper Picatinny-style rail (cosmetic, non-functional slots).
- Replicated front handguard (no internal slots).
- Side supports and rear base for folding stock.
- Full fire selector with modeled decorative selector markings.
- Available in STEP format for maximum compatibility with any software or printer.
Technical Compatibility
| Component | Compatibility |
|---|---|
| Gearbox | V2 with side retention pin |
| Magazines | M4 / AR15 type |
| Hop-up platform | Standard M4 AEG |
Not Included
- Magazine release button / pin.
- Magazine mechanism or internal parts.
- Front or rear body pins.
- Upper chamber cover or opening mechanism / spring.
- Screws / hardware.
- Folding stock.
3D Printing Parameters
- Recommended material: PLA+ or PETG for structural parts
- Layer height: 0.15 mm – 0.20 mm
- Recommended infill: 40–60% (high-stress areas: up to 80%)
- Supports: required for overhang areas (handguard and stock base)
- Orientation: outer face down for better surface finish
Manuals
Assembly documentation and compatibility references are available in the Manuals section of the website or on the project’s Discord server.
