blackdraft phoenix maxx model alignment kit v2 1 ics

Version 2.1 of the hop-up alignment system, designed specifically for ICS MPX/CXP HPA replicas using:

• Blackdraft Phoenix engine (compact high-performance HPA engine with an excellent price-to-performance ratio).
• MAXX MODEL chamber (precision hop-up chamber optimized for HPA systems with excellent bucking support and consistency).

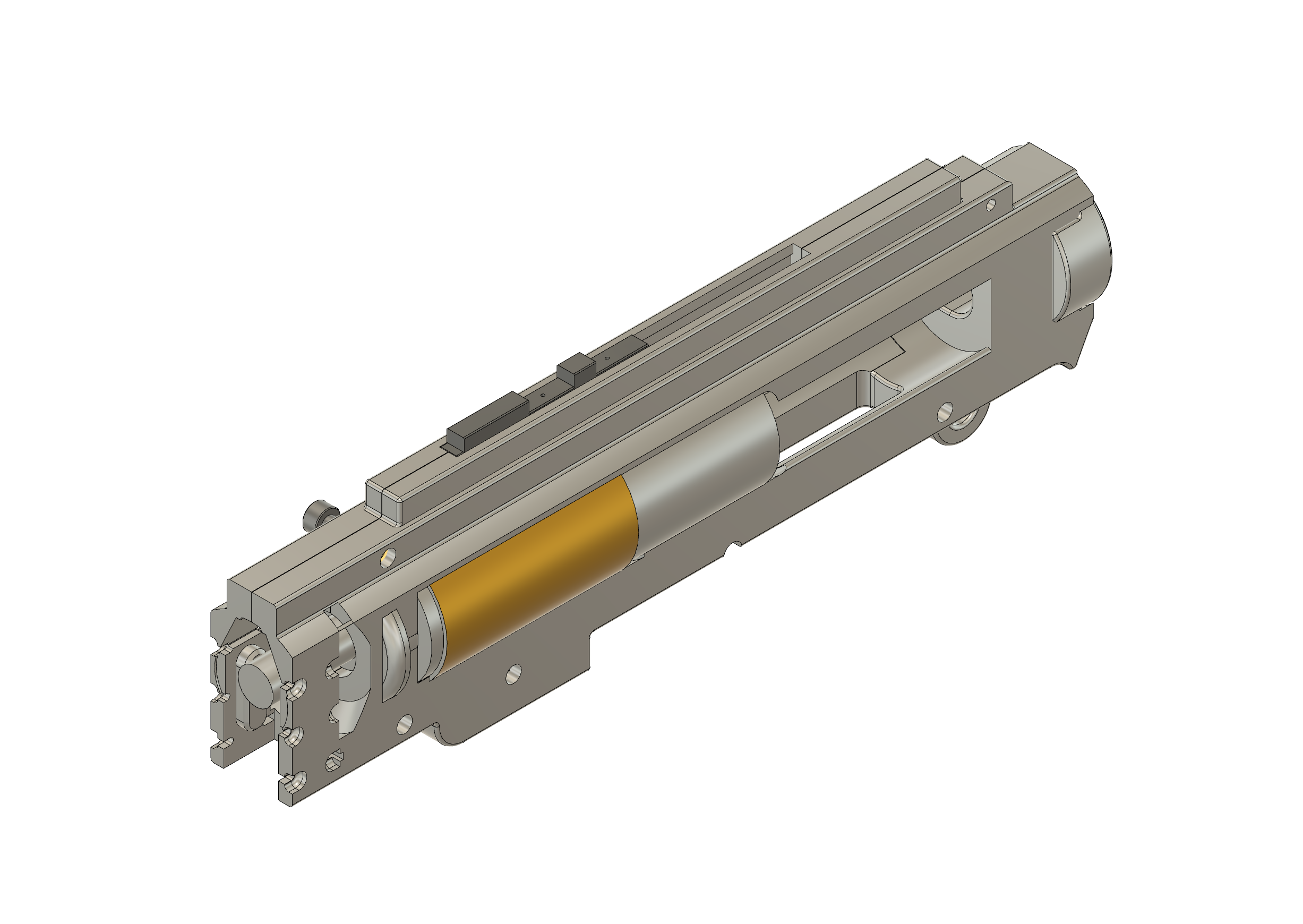

This kit ensures a solid and precise alignment between the Phoenix nozzle and the MAXX MODEL chamber, maximizing feeding consistency in compact ICS MPX/CXP platforms. Fully compatible with the original ICS lower receiver and ICS split gearbox systems.

---

Compatibility

Component	Compatibility
HPA Engine	Blackdraft Phoenix
Hop-up Chamber	MAXX MODEL
Base Replica	ICS MPX / CXP
Gearbox	ICS SPLIT (compatible with ICS lower)

---

What the kit includes

• Rear clip adapted for the compact MPX/CXP platform design.
• Base with housing for M3 threaded inserts (optional brass inserts).
• Side clip for routing the HPA tube/line in compact configurations.
• Front locking top cap specifically designed for the MAXX MODEL chamber.
• Rear plate with mounting point for an M5 screw (additional structural reinforcement).

---

Installation and adjustment

1. Printing and preparation

• Print the parts with 65–80% infill.
• Lightly sand internal areas to ensure a clean fit inside the compact MPX/CXP receiver.
• Apply dry lubricant to contact surfaces if needed.

2. Installation in the replica

• Insert the base into the original ICS lower receiver (or a compatible printed lower).
• Install the M3 inserts and mount the rear clip using the ICS split system rear pin.
• Install the MAXX MODEL chamber with the inner barrel; the top cap locks the assembly and keeps the barrel perfectly centered.
• Route the Blackdraft Phoenix HPA line through the side clip designed for the compact internal layout.

3. Final fixation

• Secure the rear plate using an M5 screw with washer for maximum rigidity.
• Verify that the Phoenix nozzle enters the MAXX MODEL chamber perfectly centered.
• Test feeding using the original ICS lower; the kit respects OEM internal dimensions.

---

Required components (not included)

• 4× M3 × 4.2 mm threaded inserts
• 4× M3 × 8 SHCS screws

---

Lower receiver recommendations

Compatible with the original ICS MPX/CXP metal lower receiver (recommended for maximum durability).

If you prefer to print your own lower, the following Gearbox V2 Lower “Universal Lower Part” models also work:

• Version 3
• Version 4.2
• Version 4.3 MTW

Available here:
https://lab.sychev.xyz/prodcuts?q=universal

---

3D printing parameters

• Approximate print time: ~1 h 15 min (compact design)
• Recommended material: PLA+
• Layer height: 0.10 mm – 0.15 mm

---

Manuals

Installation and adjustment manuals are available in the Manuals section of the website or on the project’s Discord server.
