blackdraft phoenix m power alignment kit v2 1 ics mpx

Version 2.1 of the hop-up alignment system, designed specifically for ICS MPX/CXP HPA replicas using:

• Blackdraft Phoenix engine (compact and affordable HPA engine with excellent performance in SMG configurations).
• M-POWER chamber (hop-up chamber optimized for HPA with precise bucking adjustment).

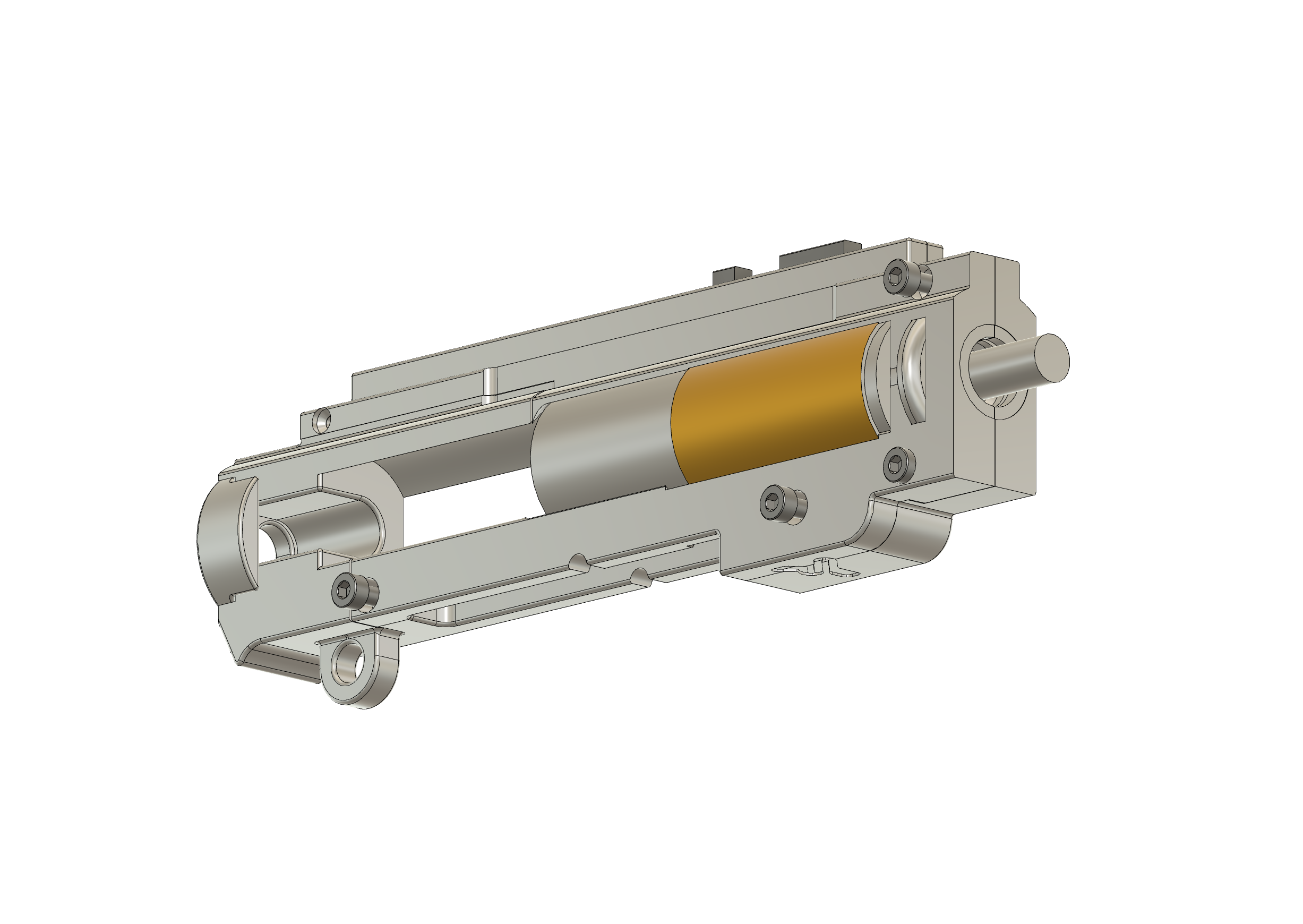

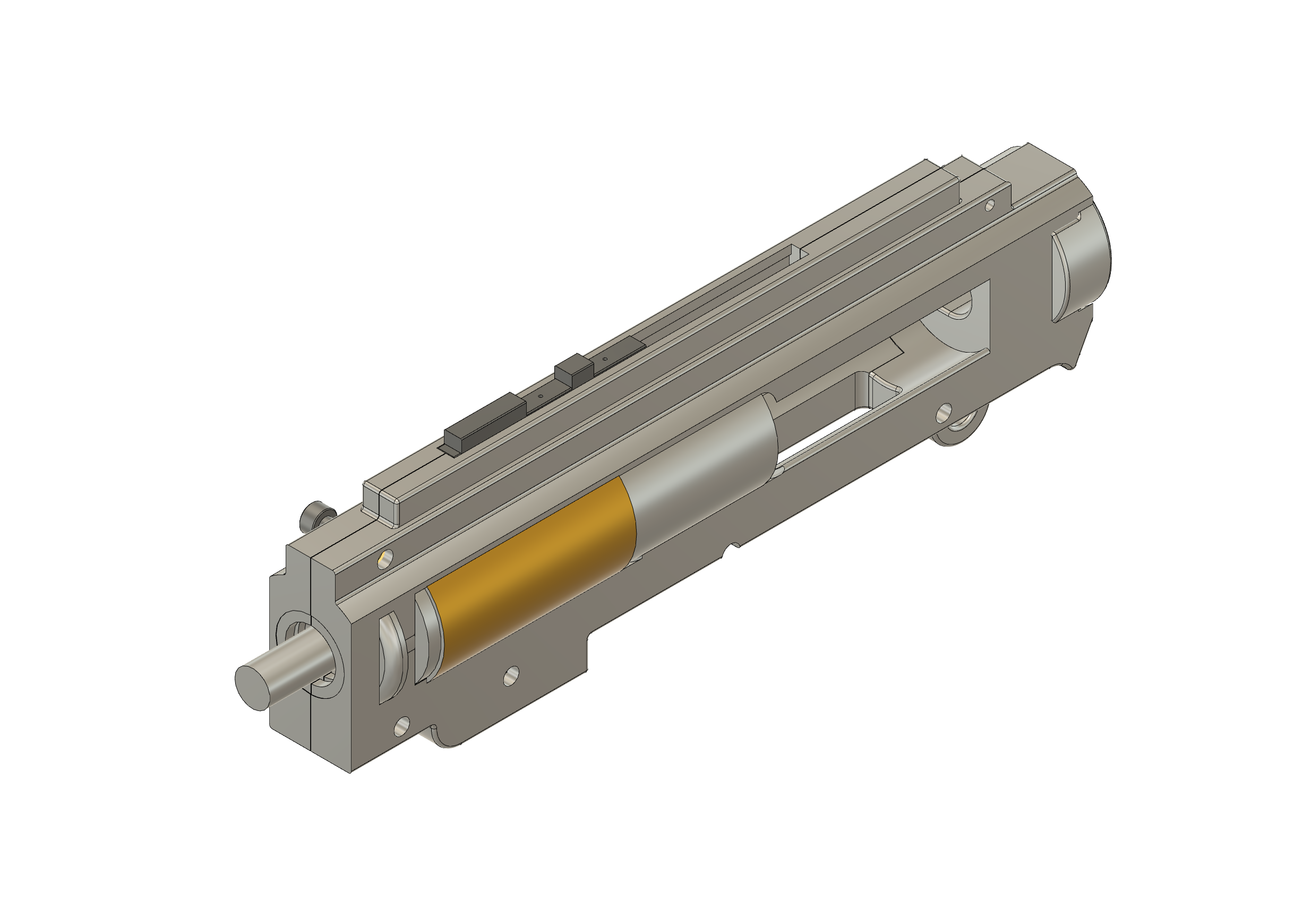

This kit ensures perfect centering of the Phoenix nozzle with the M-POWER chamber within the compact ICS MPX/CXP platform. Fully compatible with the original ICS lower receiver, maintaining the structural rigidity of the ICS split gearbox system.

---

Compatibility

Component	Compatibility
HPA Engine	Blackdraft Phoenix
Hop-up Chamber	M-POWER
Base Replica	ICS MPX / CXP
Gearbox	ICS split (compatible with ICS lower)

---

What the kit includes

• Rear clip adapted for the ICS MPX/CXP stock system.
• Base with housing for M3 threaded inserts (optional brass).
• Side clip for routing the HPA tube in compact configurations.
• Front locking top cap specifically designed for the M-POWER chamber.
• Rear plate with mounting point for an M5 screw (additional structural reinforcement).

---

Installation and adjustment

1. Printing and preparation

• Print the parts with 65–80% infill.
• Lightly sand internal areas to ensure a perfect fit in the compact MPX/CXP chassis.
• Apply dry lubricant to contact surfaces if needed.

2. Installation in the ICS replica

• Insert the base into the original ICS lower receiver and install the M3 inserts.
• Mount the rear clip using the ICS folding stock mounting point.
• Install the M-POWER chamber with the inner barrel; the top cap locks the assembly and keeps everything centered.
• Route the Phoenix HPA tube through the side clip designed for the limited space inside the MPX/CXP body.

3. Final fixation

• Secure the rear plate using an M5 screw with washer for maximum rigidity.
• Verify that the Phoenix nozzle enters the M-POWER chamber centered, without lateral play.
• Perform dry feeding tests and adjust the Phoenix pressure according to your SMG configuration.

---

Required components (not included)

• 4× M3 × 4.2 mm threaded inserts
• 4× M3 × 8 SHCS screws

---

Lower receiver recommendations

Fully compatible with the original ICS MPX/CXP lower receiver (metal).

If you need universal printable alternatives for other replicas, the following Gearbox V2 Lower “Universal Lower Part” models are available:

• Version 3
• Version 4.2
• Version 4.3 MTW

Available here:
https://lab.sychev.xyz/prodcuts?q=universal

---

3D printing parameters

• Approximate print time: ~1 h 15 min (more compact parts)
• Recommended material: PLA+
• Layer height: 0.10 mm – 0.15 mm

---

Manuals

Installation and adjustment manuals are available in the Manuals section of the website or on the project’s Discord server.
