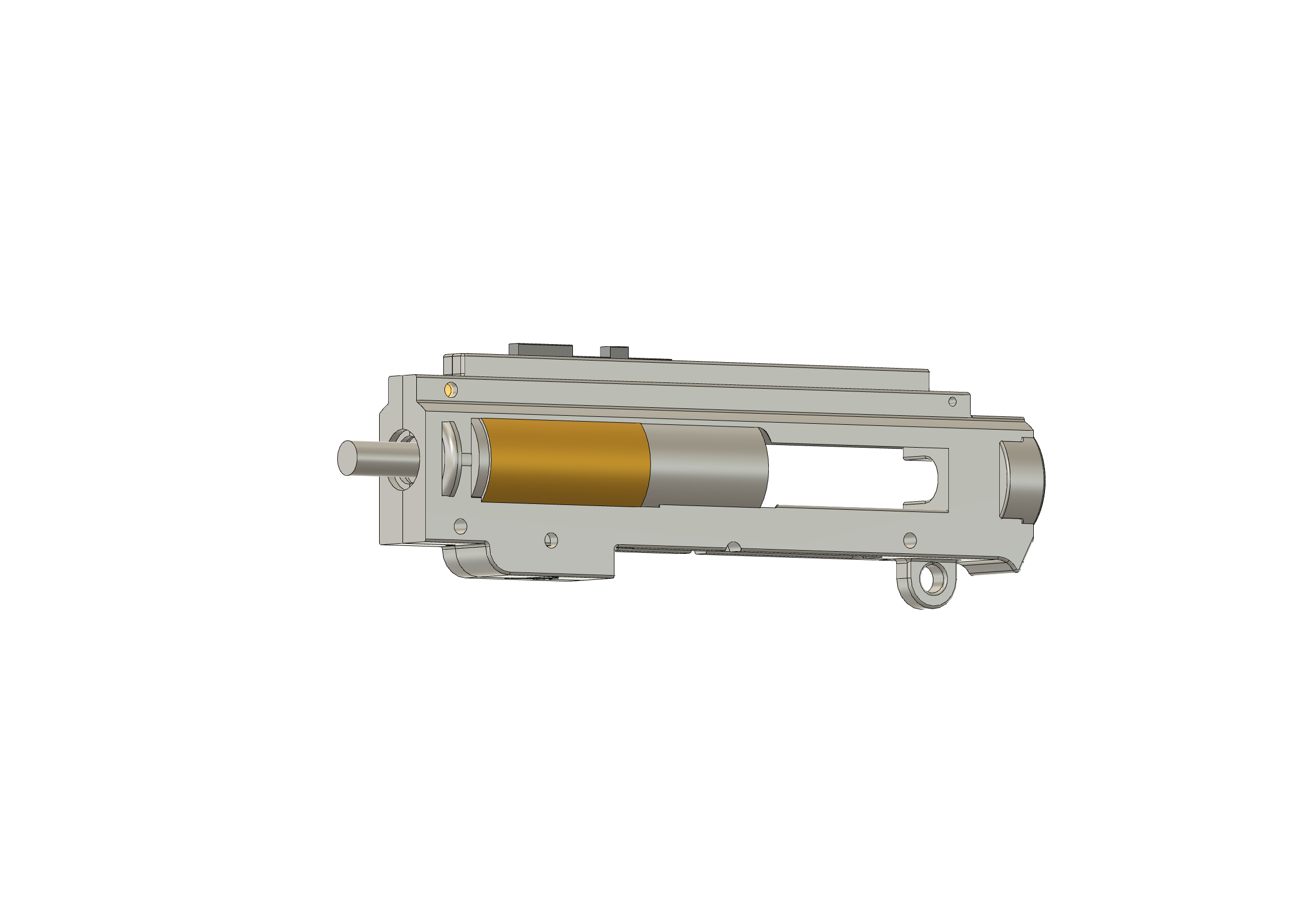

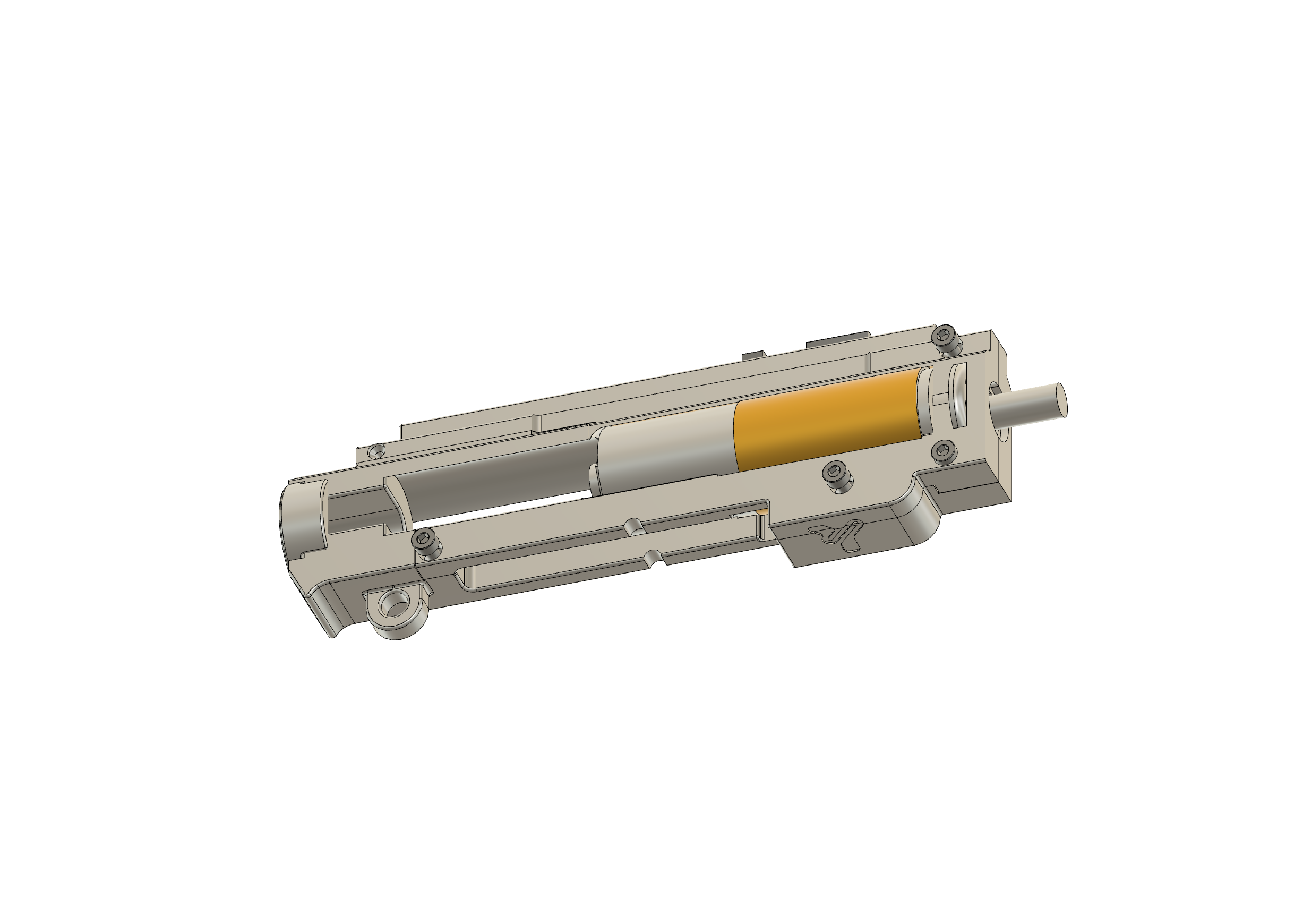

blackdraft phoenix gate eon alignment kit v2 1 ics mpx

Version 2.1 of the hop-up alignment system, designed specifically for ICS MPX/CXP HPA replicas using:

• Blackdraft Phoenix engine (compact high-performance HPA engine with simple configuration).
• GATE EON chamber (hop-up chamber designed for HPA platforms with precise adjustment and excellent feeding control).

This kit guarantees perfect alignment between the Phoenix nozzle and the GATE EON chamber, eliminating offset issues that can affect consistency in compact platforms such as ICS MPX/CXP. Fully compatible with the original ICS lower receiver.

---

Compatibility

Component	Compatibility
HPA Engine	Blackdraft Phoenix
Hop-up Chamber	GATE EON
Base Replica	ICS MPX / CXP
Gearbox	ICS split (compatible with ICS lower)

---

What the kit includes

• Rear clip for mounting using the rear body pin or fixed stock.
• Base with housing for M3 threaded inserts (optional brass inserts).
• Side clip for routing the HPA tube/line.
• Front locking top cap specifically designed for the GATE EON chamber.
• Rear plate with mounting point for an M5 screw (additional structural reinforcement).

---

Installation and adjustment

1. Printing and preparation

• Print the parts with 65–80% infill.
• Lightly sand internal and contact surfaces for a clean fit.
• Apply dry lubricant or wax on sliding surfaces.

2. Installation in the replica

• Insert the base into the original ICS lower receiver (compatible without modifications).
• Mount the rear clip aligned with the ICS rear body pin.
• Install the GATE EON chamber with the inner barrel; the top cap locks the assembly while keeping everything centered.
• Route the Blackdraft Phoenix HPA line through the side clip, optimized for the compact MPX/CXP layout.

3. Final fixation

• Secure the rear plate using an M5 screw with washer for maximum rigidity.
• Verify that the Phoenix nozzle enters the EON chamber perfectly centered.
• Perform dry feeding tests and adjust the EON electronics if necessary.

---

Required components (not included)

• 4× M3 × 4.2 mm threaded inserts
• 4× M3 × 8 SHCS screws

---

Lower receiver recommendations

This kit is 100% compatible with the original ICS MPX/CXP lower receiver, requiring no modifications.

If you need printable alternatives for other builds, the following Gearbox V2 Lower “Universal Lower Part” models are also compatible:

• Version 3
• Version 4.2
• Version 4.3 MTW

Available here:
https://lab.sychev.xyz/prodcuts?q=universal

---

3D printing parameters

• Approximate print time: ~1 h 30 min
• Recommended material: PLA+
• Layer height: 0.10 mm – 0.15 mm

---

Manuals

Installation and adjustment manuals are available in the Manuals section of the website or on the project’s Discord server.
