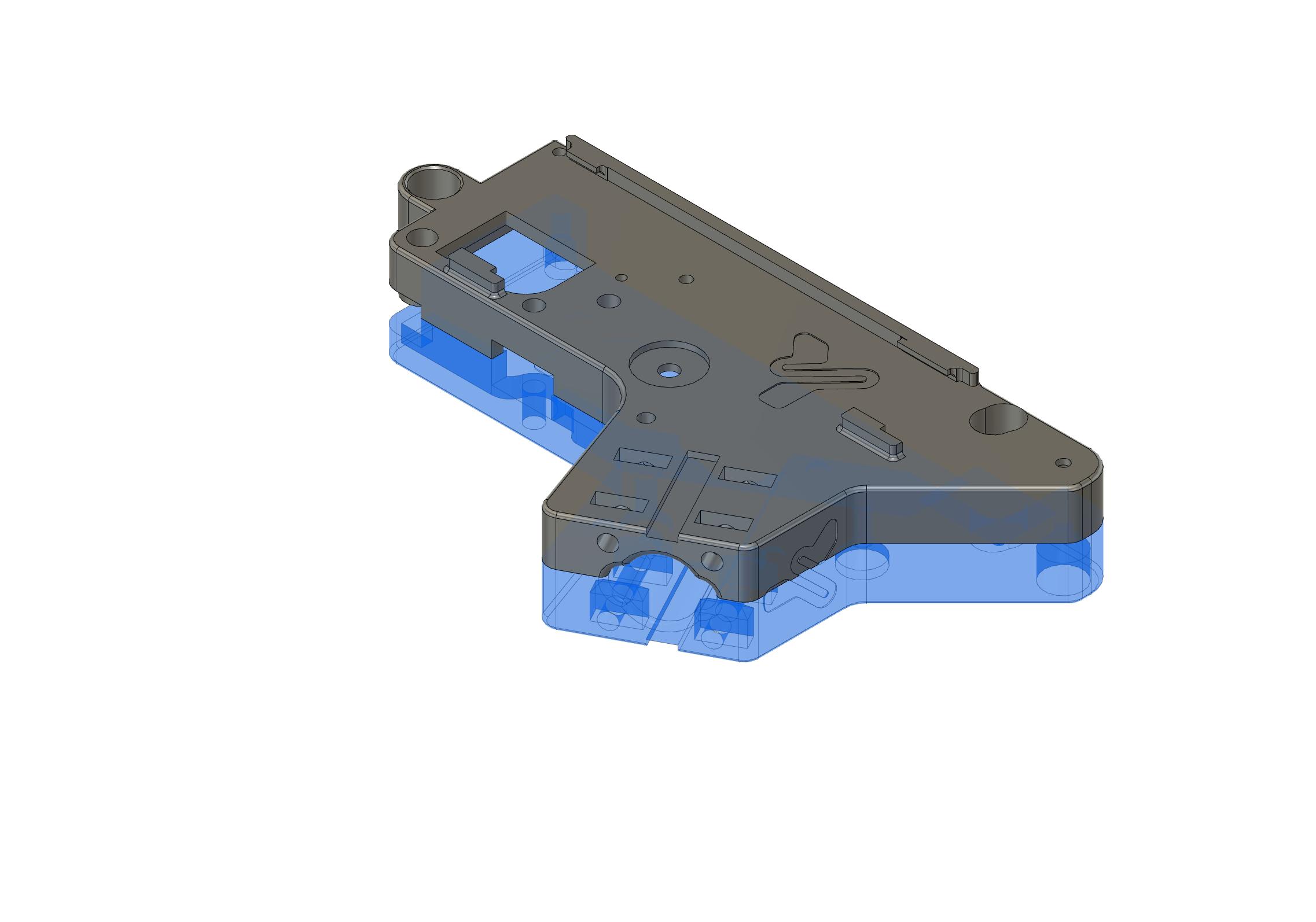

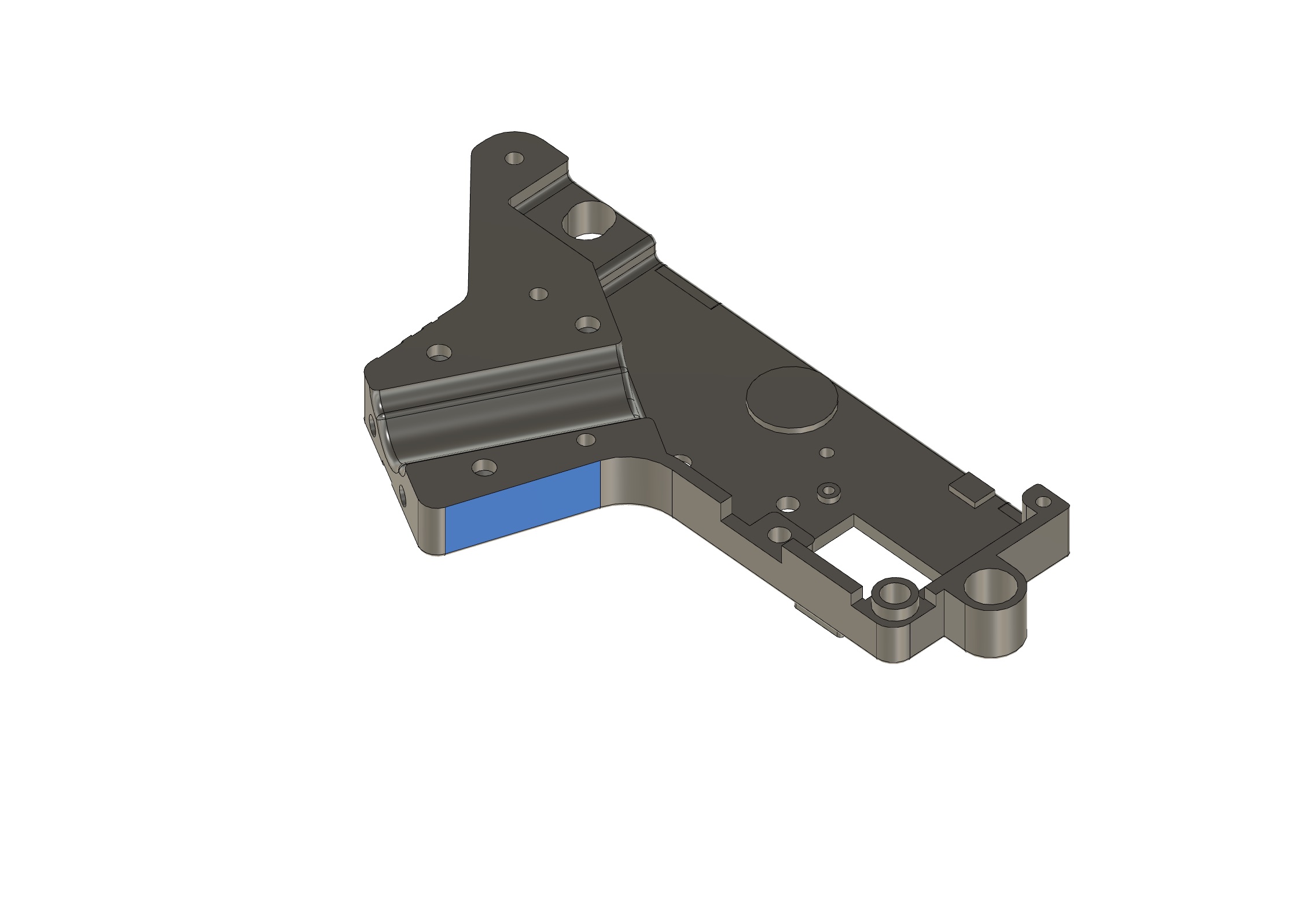

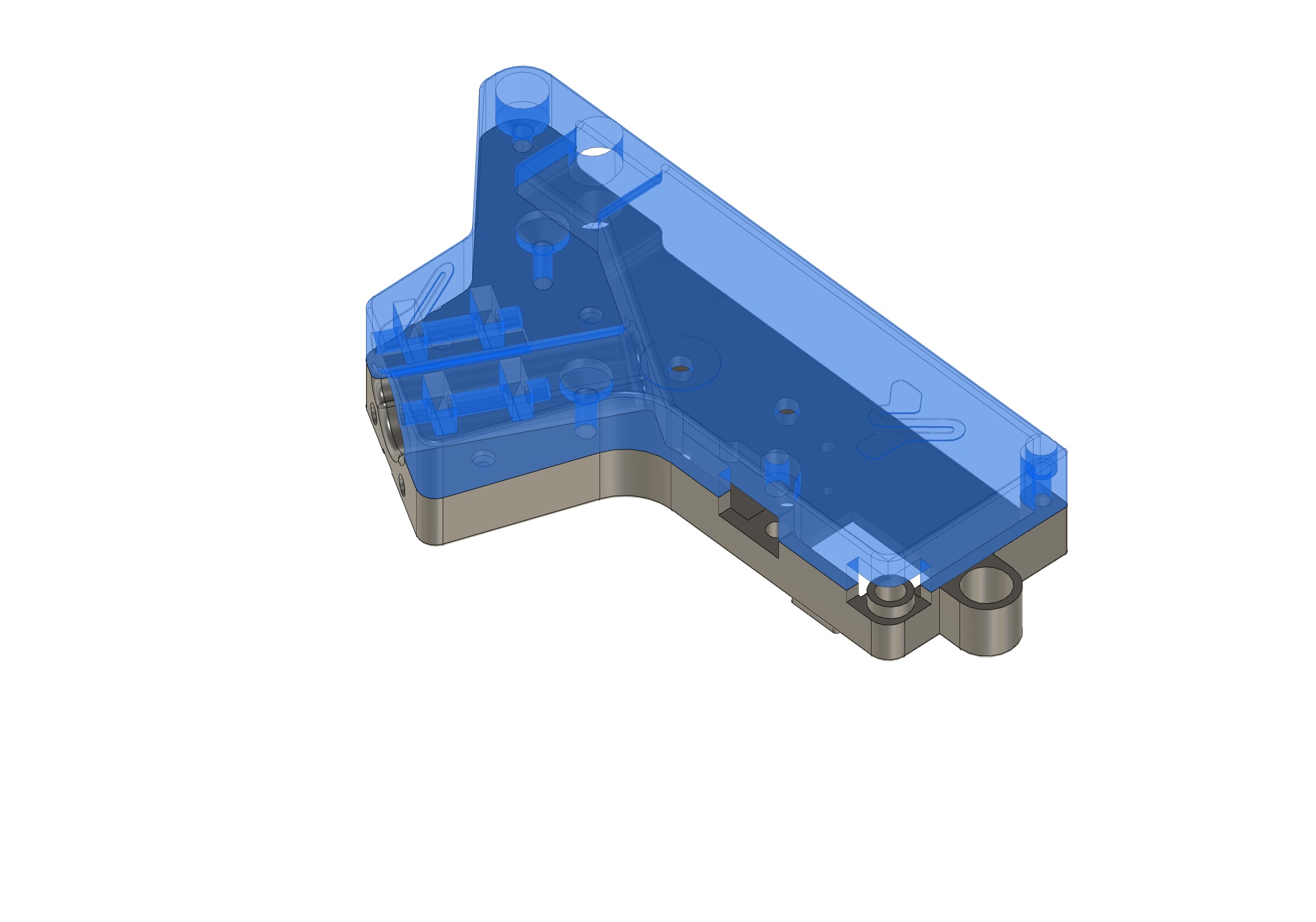

Lower Universal Gearbox V4.2

Version 4 of the Universal Lower for V2 Gearbox, updated with all improvements suggested by the community after the success of version 3.

This universal lower has been completely redesigned to provide greater stability and strength, with extended compatibility across multiple replica platforms and electronic control systems (FCU). Designed for 3D printing without supports, enabling a clean and professional finish.

🎁 The previous version (Ver. 3) is still available for free here:
https://lab.sychev.xyz/products/aeg-universal-lower-ver3-estilo-ics

🎁 The previous version (Ver. 4.3 MTW) can be found here:
https://lab.sychev.xyz/products/aeg-universal-lower-ver4-3-mtw-estilo-ics

Available variants

• Ver. 4.1: Compatible with SCAR + SR25 + ICS + M4
• Ver. 4.2: Compatible with SCAR + ICS + M4
• Ver. 4.2 Titan 2: Compatible with TITAN 2 FCU
• Ver. 4.2 Titan 2 + Maxx: Compatible with TITAN 2 FCU and MAXX Model mag release button

Key features

• Fully redesigned for improved structural stability and strength
• Integrated select plate compatible with:
  • 🔧 M4
  • 🔧 SCAR-L
• Enlarged grip hole for easier installation of grips from different manufacturers
• 2 side channels for clean and organized internal cable routing
• Top cover with integrated magazine pin
• OEM mounting holes for FCU/control boards
• Redesigned side supports with puzzle-style locking for maximum rigidity
• No supports required when printing: clean and fast production

Note: You may need to slightly enlarge the trigger hole and safety lever hole, as different manufacturers use varying thicknesses.

Design revisions

• Rev. 7: Hardware adjustments, design fix
• Rev. 6: Hardware adjustments, standardized dimensions
• Rev. 5: Added dedicated supports for Gate Titan 2
• Rev. 4: OEM holes for mounting control boards
• Rev. 3: Updated side supports with puzzle-style fit
• Rev. 2: Redesigned top cover supports for cleaner printing
• Rev. 1: Added top cover with integrated magazine pin

Verified compatibility

This lower has been successfully tested on the following platforms:

• Standard V2 gearbox
• ICS (split system)
• Amoeba
• VFC
• SR-25
• SCAR-L

💡 Special offer: If you purchase any SR-25 or SCAR-L kit, you will receive a 100% discount coupon for this model.

FCU compatibility

• ✅ Wolverine (all models)
• ✅ Gate Titan 2 (with dedicated supports included in Rev. 5)

Recommended hardware (not included)

• 6× short M3 screws: for general lower assembly
• 3× long M3 screws: one at the rear and two for the grip
• 4–8× M3 nuts: optional, to reinforce grip mounting

Screws thread directly into the printed body, providing sufficient rigidity without the need for metal inserts.

---

3D printing parameters

• Estimated print time: ~3–4 h (depending on printer and model)
• Recommended material: PLA+
• Layer height: 0.15 mm – 0.20 mm
• Recommended infill: 75–100% (for maximum strength)
• Supports: NOT required (optimized for support-free printing)

Manuals

Installation and setup manuals are available in the Manuals section on the website or on the project’s Discord server.
